Name: Barco Nio MDNG-2121 2MP 21" Grayscale Medical Diagnostic Radiology Monitor
Brand: Barco
Availability: InStock
Rating: 5 (1 reviews)

Tech Specs

MFG Part#	K9601651
Screen Type	Grayscale
Resolution	2MP (1200 x 1600)
Pixel Pitch	0.270 x 0.270 mm
Contrast Ratio	850:1
Aspect Ratio Hv	4:3
Calibrated Luminance	500 cd/m2
Max Luminance	1650 cd/m2
Calibration	Manual
Backlight Sensor	Yes
Backlight	CCFL
Screen Technology	IPS
Active Screen Size (H x V)	432 x 324 mm (17.0 x 12.8)
Video Input Signals	DVI
Recommended For	General Radiology
Viewing Angle (H, V)	178°, 178°
Mount Type	VESA (100 mm x 100 mm)
Dimensions (W x H x D)	382 x 577 x 249 mm (15 x 22.7 x 9.8)
Power Consumption	65W
Power Requirements	100-240 V, 50/60Hz
Weight	26.7 lbs (12.1 kg)

Manufacturer	Barco
MFG Part#	K9601651
Screen Type	Grayscale
Resolution	2MP (1600 x 1200)
Pixel Pitch	0.2700 x 0.2700 mm
Contrast Ratio	850:1
Aspect Ratio Hv	4:3
Calibrated Luminance	500 cd/m2
Max Luminance	1650 cd/m2
Calibration	Manual (external USB sensor)
Backlight Sensor	Yes
Front Sensor	No
Ambient Light Sensor	No
Backlight	CCFL
Screen Technology	TFT AM LCD Dual Domain IPS
Active Screen Size (DIAGONAL)	21.3" (541 mm)
Active Screen Size (H x V)	432 x 324 mm (17.0 x 12.8")
Video Input Signals	DVI
Recommended For	All digital images, except digital mammography
3D Tomosynthesis	NO
Viewing Angle (H, V)	178°, 178°
Mount Type	VESA (100 mm)
Dimensions (W x H x D)	382 x 577 x 249 mm (15" x 22.7" x 9.8")
Power Consumption	65 W
Power Requirements	100~240V, 50/60Hz
Weight	26.7 lbs (12.1 kg)

Warranty & Support

3-Year Premium Warranty

3-year premium Monitors.com warranty on parts & labor

3-year premium Monitors.com loaner coverage

3-year premium Monitors.com technical support

3-Year Hot-Swap Coverage

If your equipment fails, we will send you a replacement product so you do not have to wait for a repair

30-Day Return Guarantee

Enjoy peace of mind with our 30-day return guarantee

Free Technical Support

1 (800) 801-8432

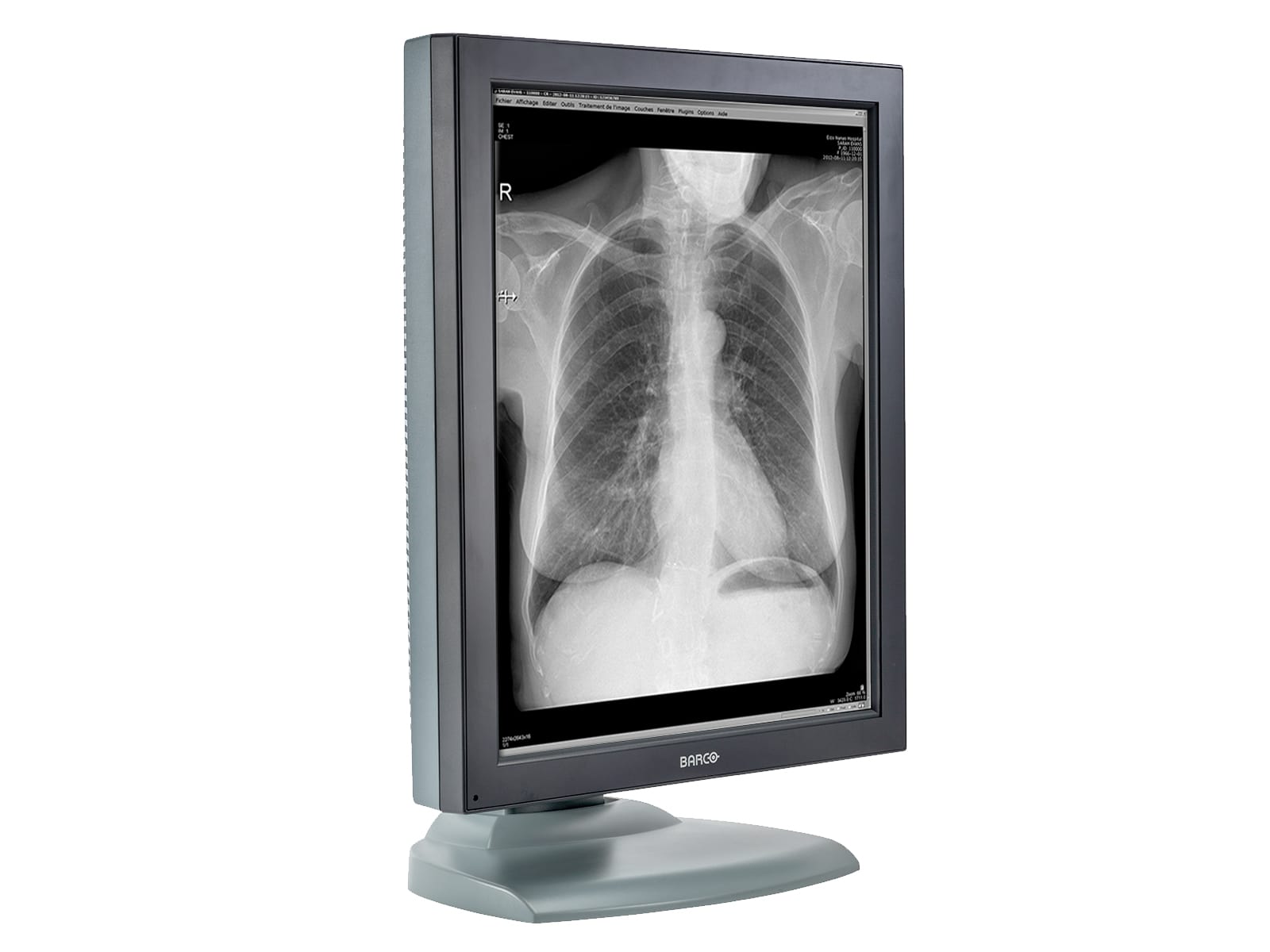

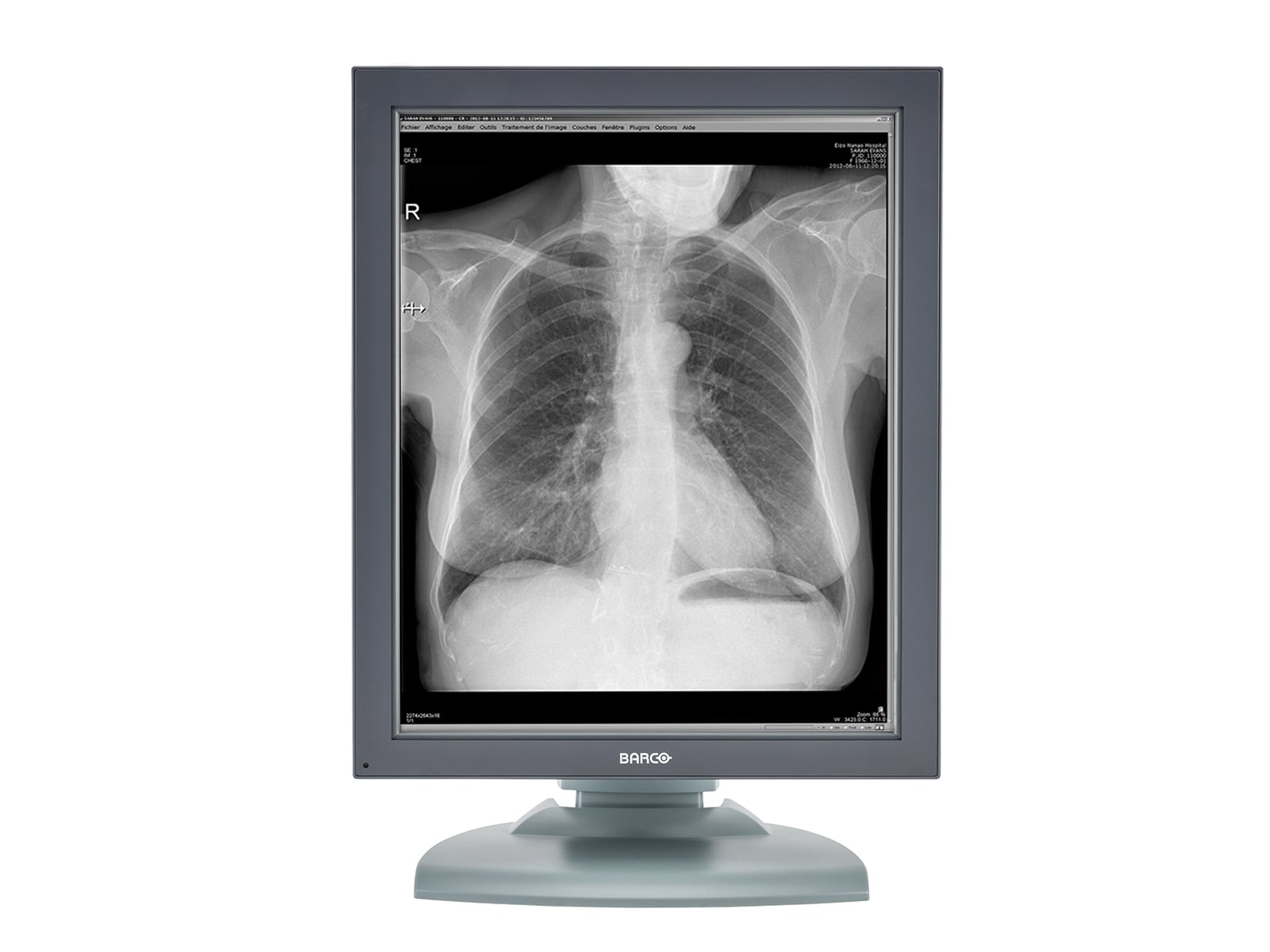

The Barco Nio MDNG-2121

The Barco Nio MDNG-2121 is an excellent choice for radiologists who want an affordable grayscale diagnostic display monitor for reading general radiology cases without compromising image quality.

Flexible Design

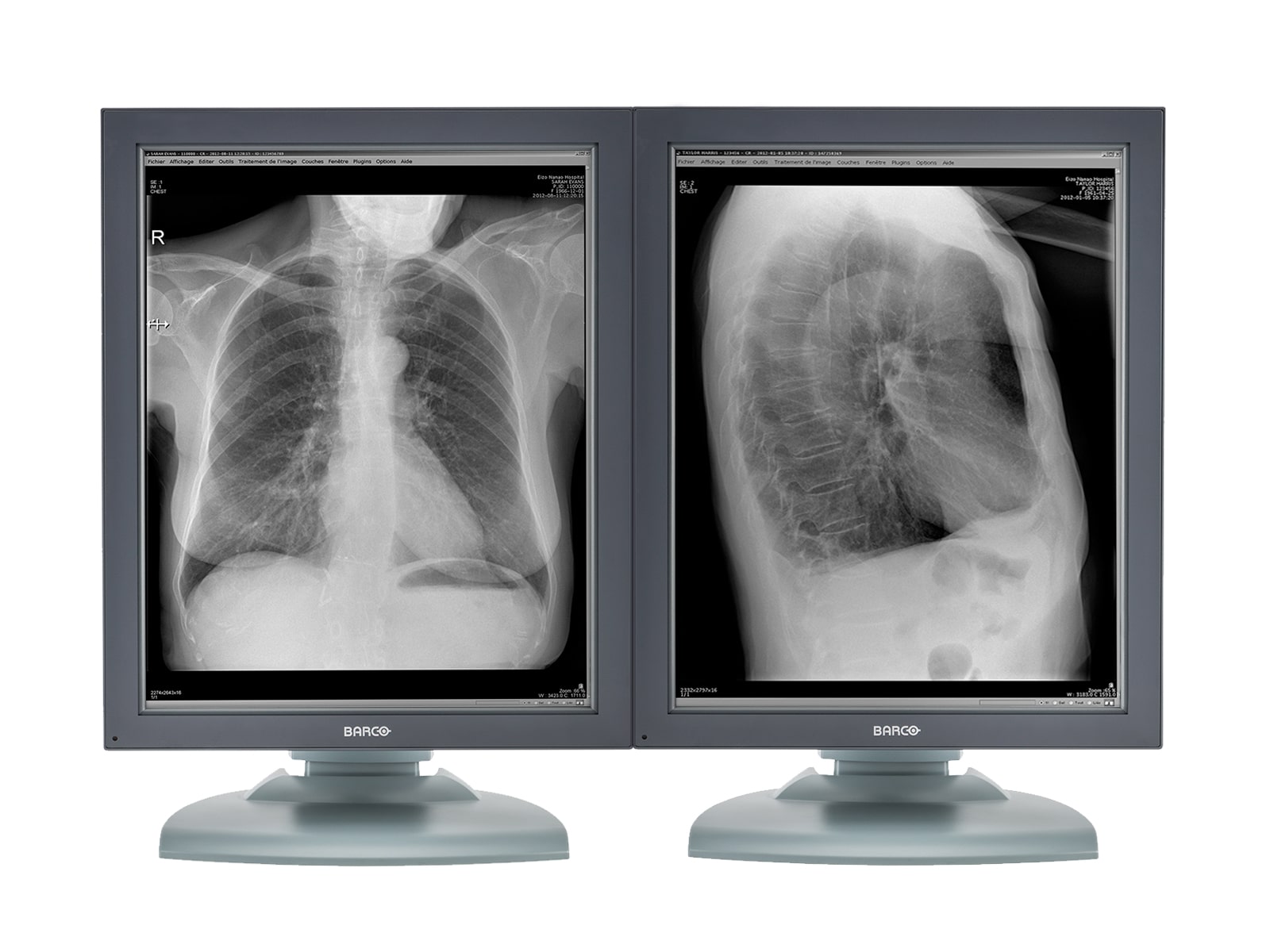

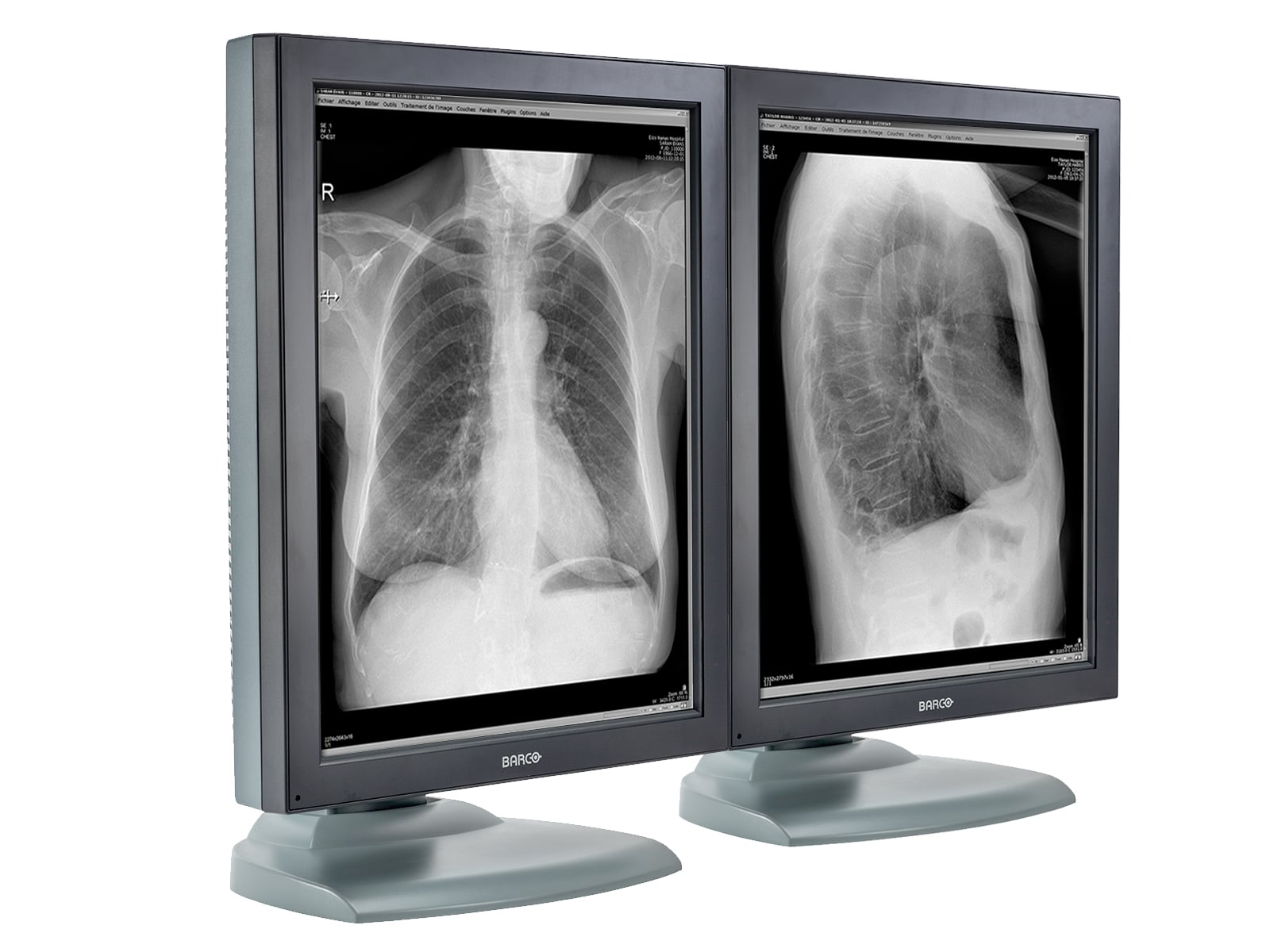

The MDNG-2121's (1,600 x 1,200 pixels) 21-inch screen offers a large viewing area with a viewing angle of 170°. The Barco Nio MDNG-2121 is available in a single- or multi-head configuration, with excellent color matching between displays, and is usable in portrait and landscape orientation.

Crisp, Bright Imaging

The Barco Nio MDNG-2121 has a 10-bit architecture that enables 1,024 shades of gray simultaneously out of an existing palette of 4,096 shades. This results in highly accurate reproductions of medical images on the screen and lets subtle details pop without the need for panning or zooming. Additionally, the anti-reflective, protective front cover improves image contrast while preventing damage to the screen. It also makes disinfecting the screen easier and safer for the electronic components.

Efficient Workflow

Preserve image quality, prolong equipment uptime, and maintain DICOM compliance with no manual effort on your part. Without disrupting reading sessions, the Barco Nio MDNG-2121 continually makes automatic adjustments to screen brightness using integrated MediCal QAWeb® software and the Backlight Output Stabilization (BLOS®) sensor. When the Nio MDNG-2121 is paired with Barco MXRT high-speed display controllers, you can further boost workflow efficiency.

Longevity Without Diminished Performance

With any monitor, brightness dims over time. To compensate for this inevitability and maintain brightness levels that comply with DICOM, the BLOS sensor on the Barco Nio MDNG-2121 measures the output of the monitor's lamps and then communicates with the monitor's electrical panel to increase luminance as needed. As an added benefit, the BLOS sensor significantly shortens power-up time.

Versatility

With the proper adapter, the Barco Nio MDNG-2121 is compatible with any graphics card, as well as both Windows and Mac. As a result, you won't have to worry about the monitor's compatibility with your workstation, laptop, or PC.

Features at a Glance

High levels of brightness, image crispness, and excellent viewing angle at a great value
Backlight output stabilization sensor helps to extend the life of the monitor and maintains compliance with luminance requirements
10-bit lookup table enhances grayscale visualization
MediCal QAWeb software automates calibration
High-speed display controllers maximize workflow efficiency

What's Included

Display Controller (Graphics Card)
Calibration Software
Accessories
