Barco® Coronis MDCG-3120 3MP 20.8" Grayscale General Radiology Diagnostic Display

Choose Your Option: K9601662-P-R
Request a Quote

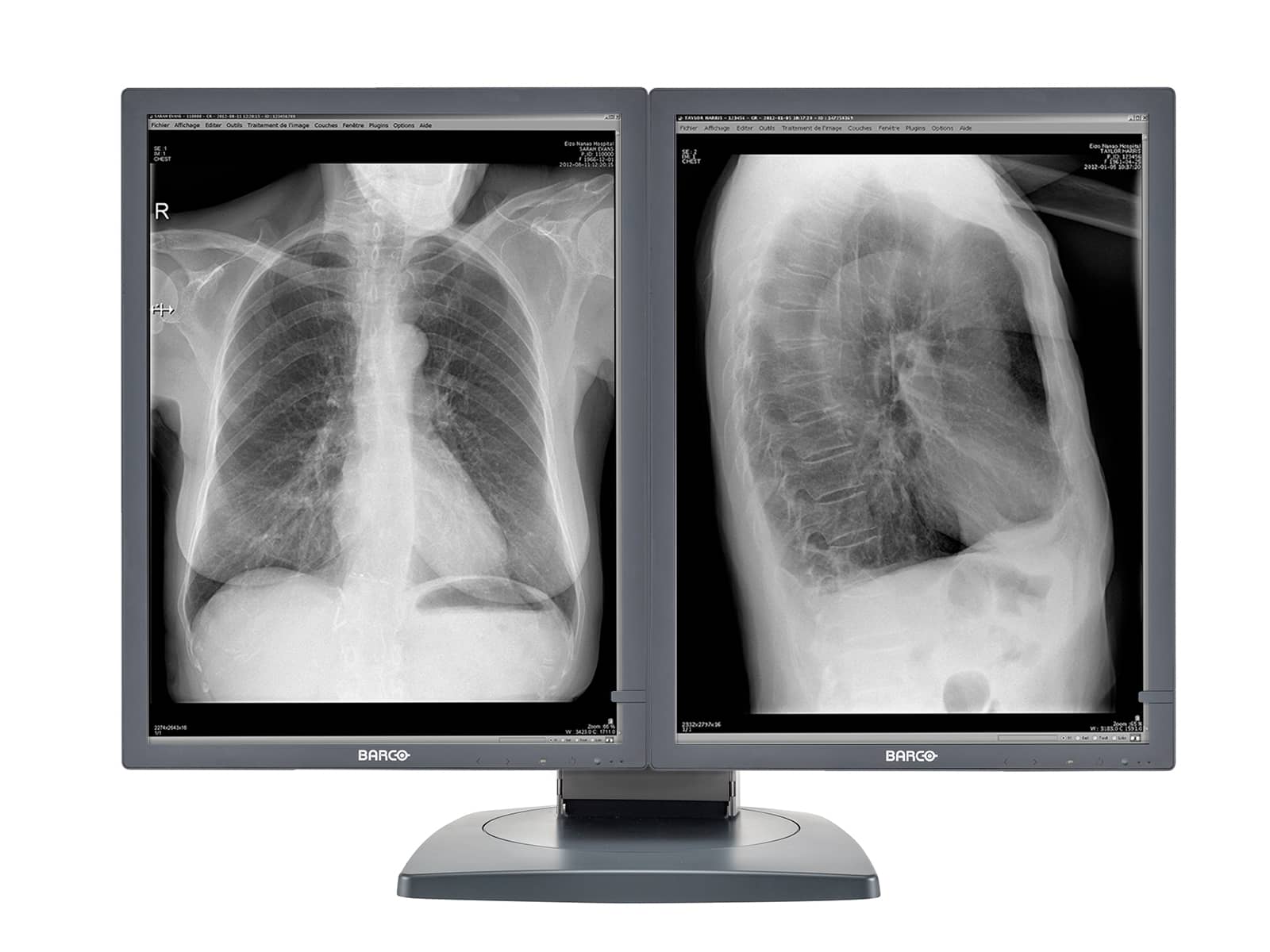

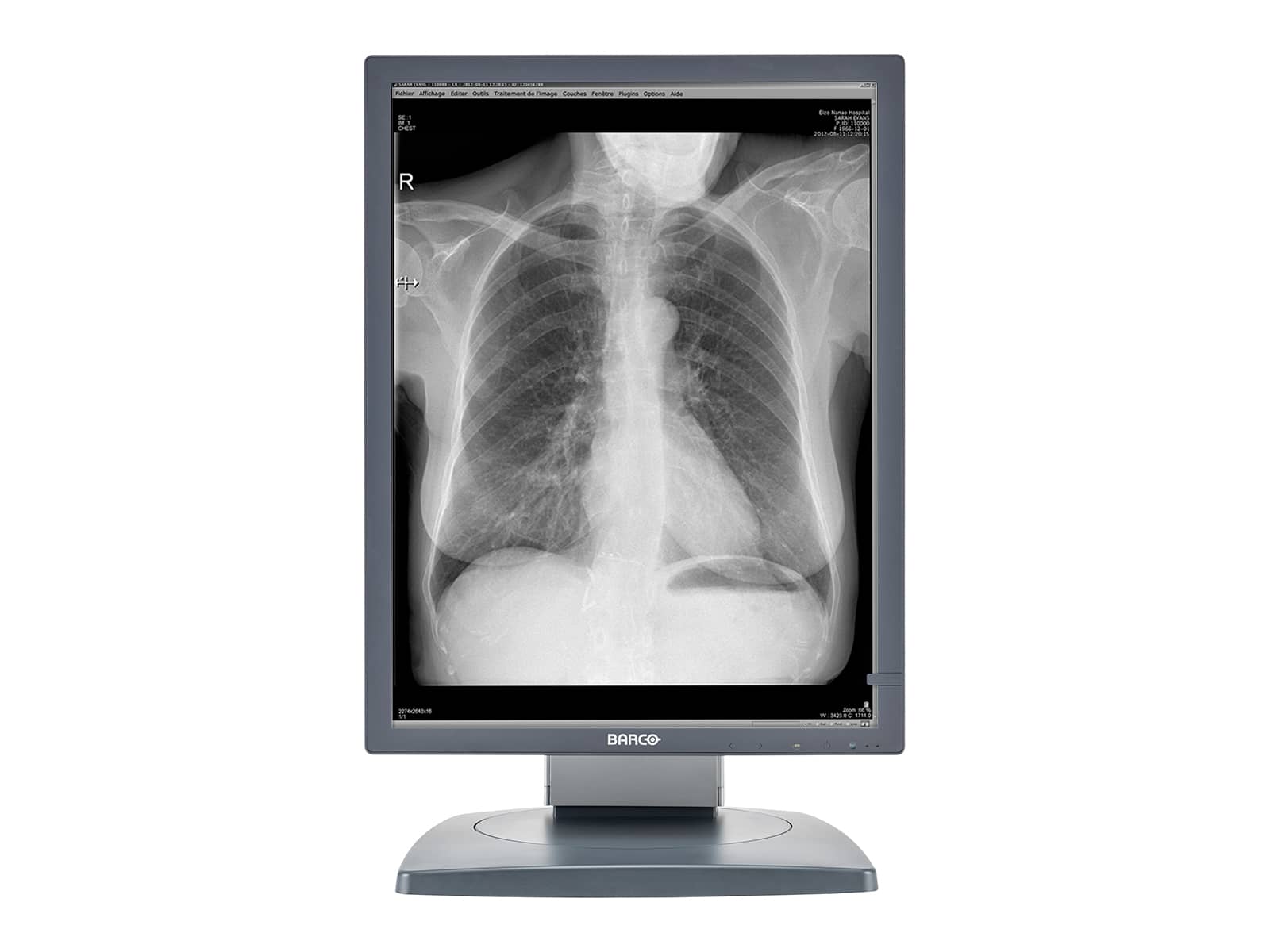

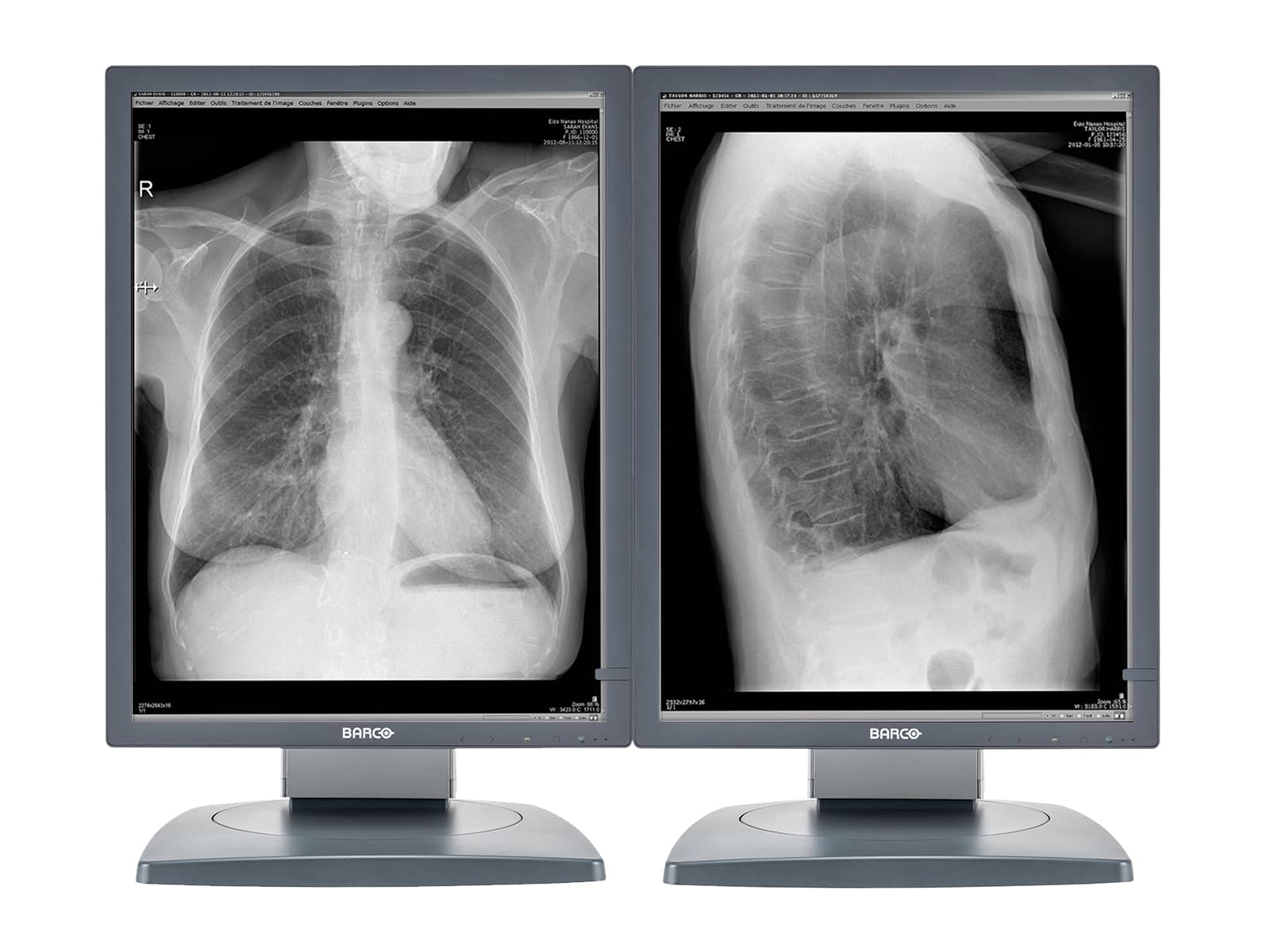

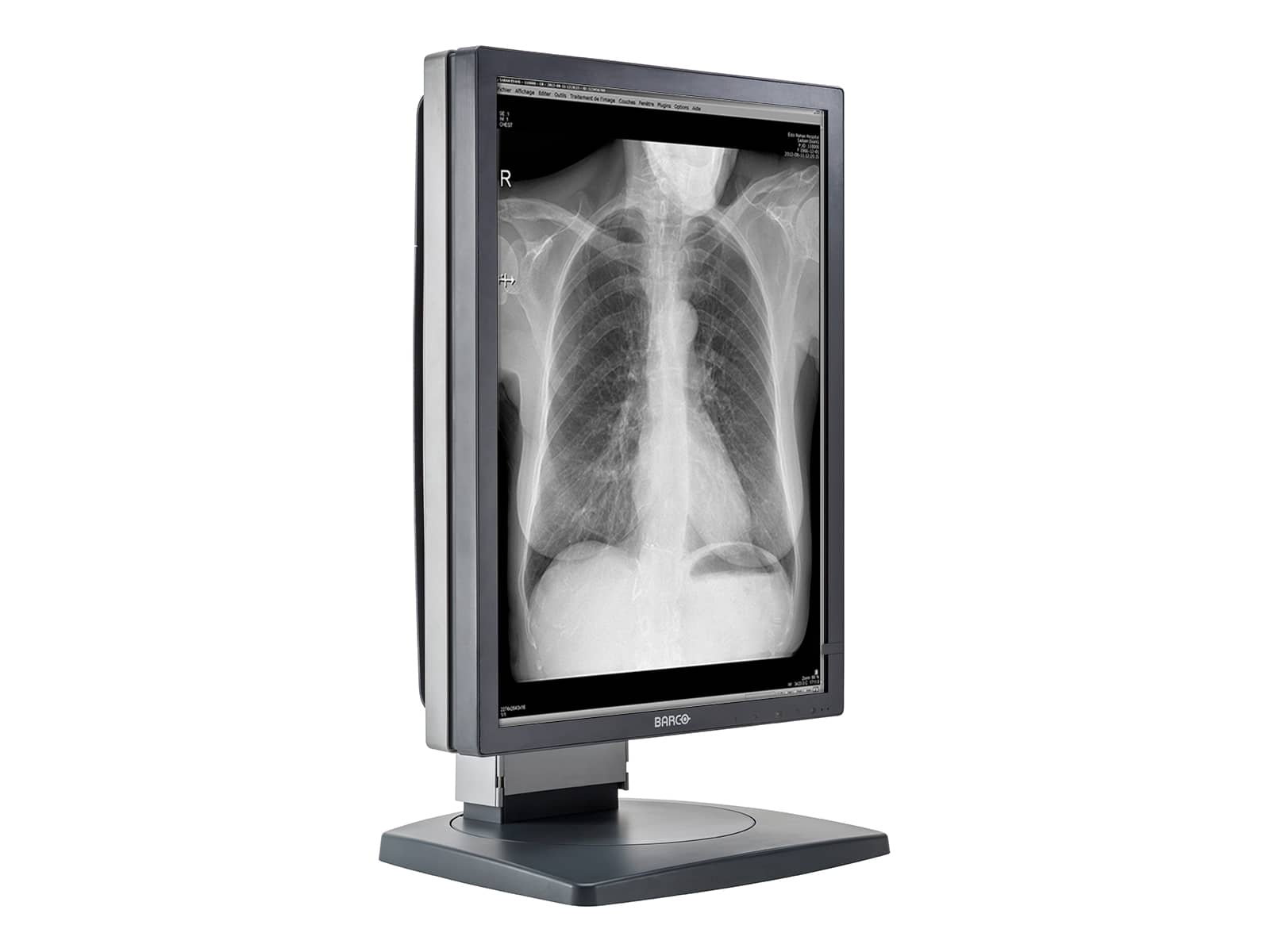

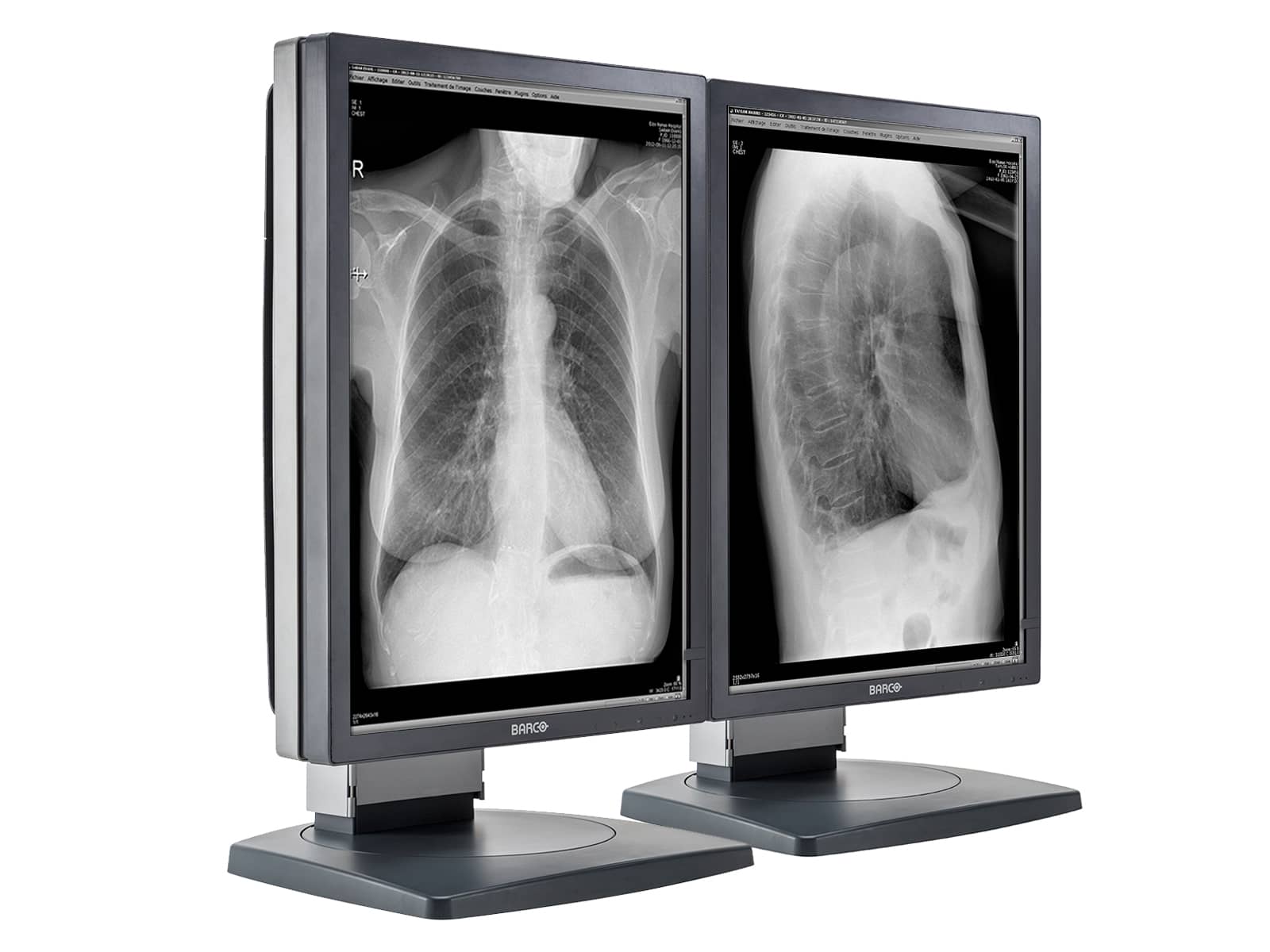

Barco® Coronis MDCG-3120 3MP 20.8" Grayscale General Radiology Diagnostic Display

For superior grayscale radiology imaging, you can't beat the Barco® Coronis 3MP. With an advanced resolution of 1536 x 2048, it delivers optimum diagnostic precision and workflow efficiency in high-resolution PACS imaging, CT, MRI, chest radiology, angiography, etc.

Superior Grayscale Technology

You'll enjoy ultimate precision and performance with this display system. The advanced 10-bit architecture ensures accurate image representation with 1024 simultaneous gray shades out of a palette of 4096.

Automatic DICOM Compliance Whatever the Lighting Conditions

Managing brightness couldn't be easier. The integrated I-Guard continually guards and adjusts the luminance output of the diagnostic viewing area without your intervention. Combined with the MediCal QAWeb software, I-Guard delivers fast and easy calibrations, automatic Quality Assurance testing, and remote display diagnoses.

The integrated, intelligent Ambient Light Compensation (ALC) system ensures that the Coronis 3MP remains DICOM-compliant under all lighting conditions by adapting its brightness relative to the ambient light conditions.

Barco® Coronis MDCG-3120 3MP Greyscale Display Solution Includes:

  • A 3MP flat-panel LCD display

  • Barco® MediCal QAWeb software for automated calibration and Quality Assurance

  • A high-speed, high-performance display controller

  • Built-in I-Guard Front Sensor
  • Protective Glass
  • Compatible with all MXRT, AMD, and Nvidia Graphics Cards


What's Included

  • Display Controller (Graphics Card)

  • Calibration Software

  • Accessories

    Tech Specs

    Manufacturer Barco®
    MFG Part# K9601662
    Screen Type Grayscale
    Resolution 3MP (2048 x 1536)
    Pixel Pitch 0.2070 x 0.2070 mm
    Contrast Ratio 900:1
    Aspect Ratio Hv 4:3
    Calibrated Luminance 500 cd/m2
    Max Luminance 1000 cd/m2
    Calibration Auto (built-in front sensor)
    Backlight Sensor Yes
    Front Sensor Yes
    Ambient Light Sensor Yes
    Backlight CCFL
    Screen Technology TFT AM LCD Dual Domain IPS
    Active Screen Size (DIAGONAL) 20.8" (528 mm)
    Active Screen Size (H x V) 424 x 318 mm (16.7 x 12.5")
    Video Input Signals DVI
    3D Tomosynthesis No
    Viewing Angle (H, V) 178°, 178°

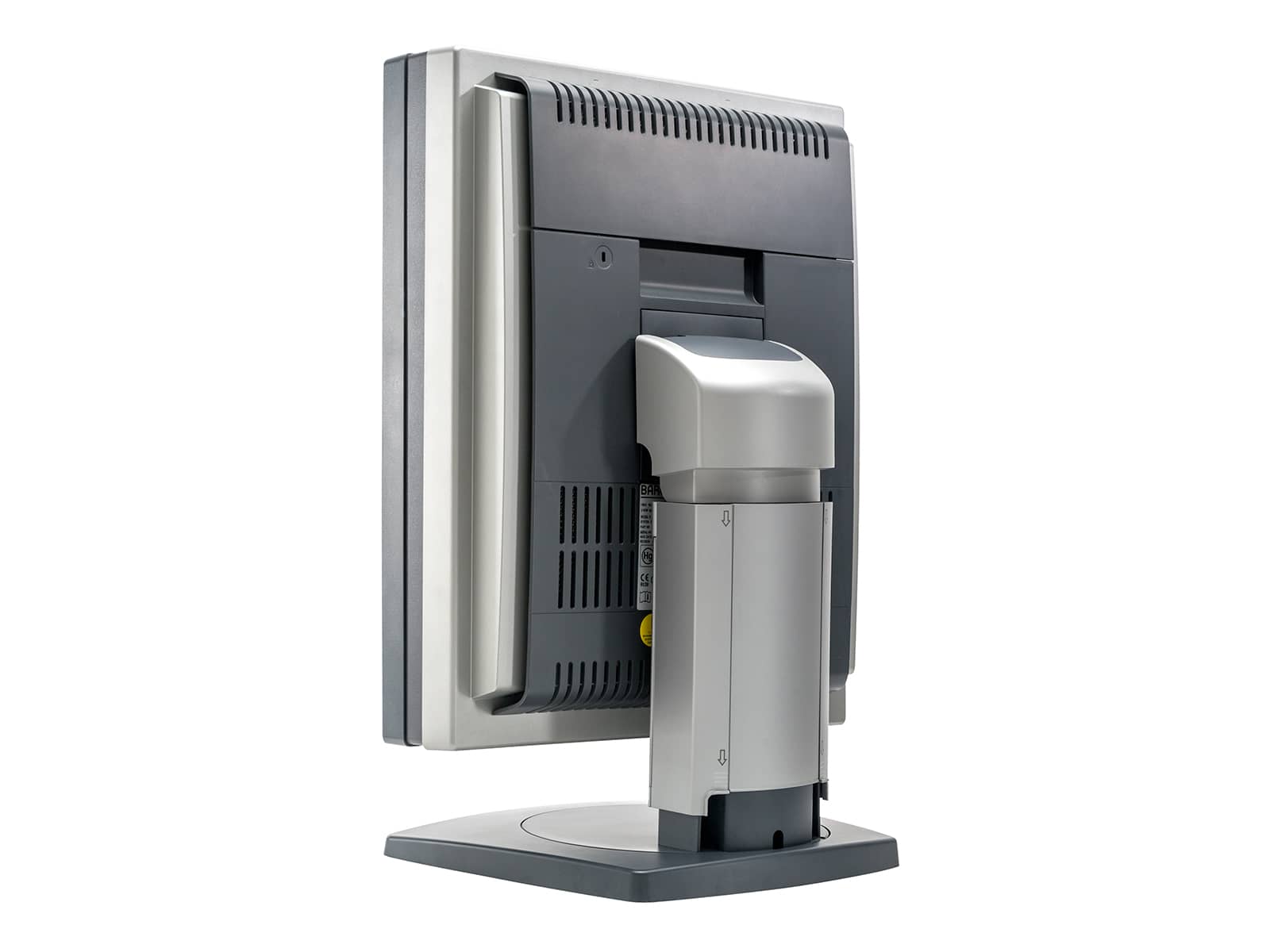

    Mount Type VESA (100 mm)
    Dimensions (W x H x D) 369 x 558 x 285 mm (14" x 21.9" x 11.2")
    Power Consumption 64 W
    Power Requirements 100–240 VAC, 1.5–0.6 A, 47-63 HZ
    Weight 31.3 lbs (14.2kg)
