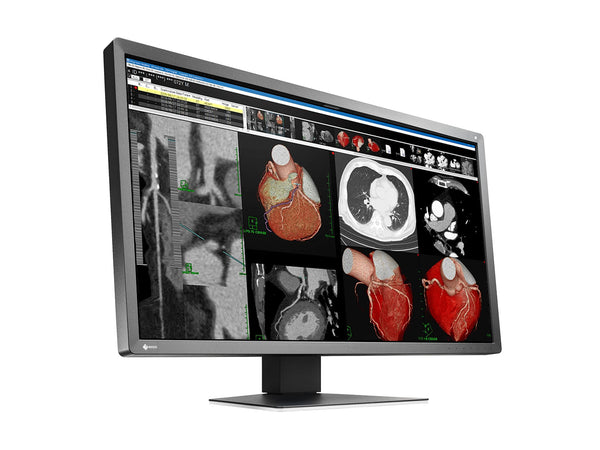

Eizo RadiForce MX317W 8MP 30.5" Color Clinical Review Display Monitor (MX317W-BK)


Choose Your Option: MX317W-BK-N
Price:
Request a Quote

Eizo RadiForce MX317W 8MP 30.5" Color Clinical Review Display Monitor (MX317W-BK)

The MX317W is a 30.5-inch medical monitor with an 8-megapixel resolution, the highest in the RadiForce MX-Series of clinical review monitors. It has DICOM Part 14 calibration support and can display a variety of medical images at the same time, including CT, MRI, and ultrasound, making it incredibly cost-effective.

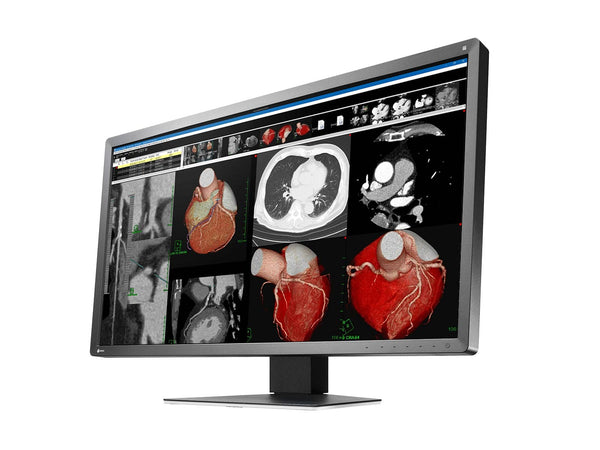

Improved Workflow with High Resolution

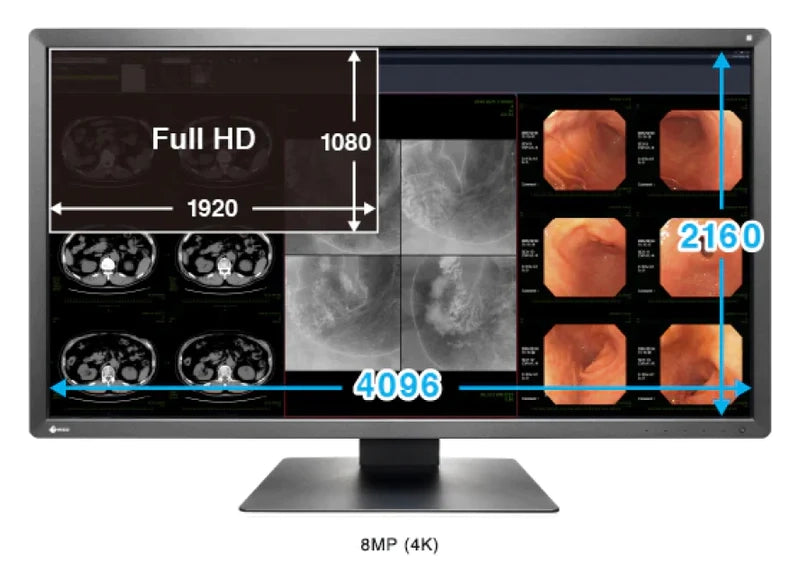

The MX317W offers the highest resolution from the MX-Series, displaying 8 megapixels of information (4096 x 2160 pixels) on the large 30.5-inch screen. By utilizing the MX317W's increased viewing space and freedom of layout, it is possible to display various inspection images side by side, such as CT and MRI images in a tiled format. This will allow for the comparison of old and current scans, ultimately improving efficiency.


Make the Precise Diagnosis

The Eizo RadiForce MX317W carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.


Experience Smooth Color Reproduction

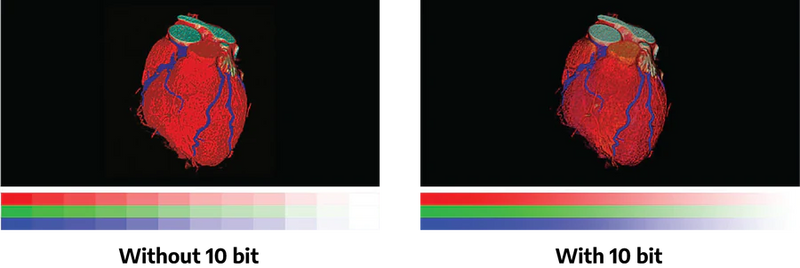

The Eizo RadiForce MX317W supports 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate color reproduction for 3D color rendering and image fusion.


Manage Effortless Quality Control

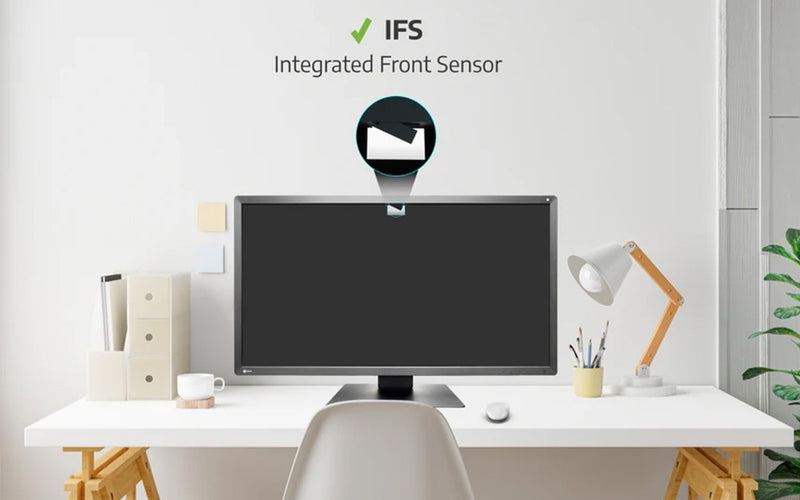

A built-in Integrated Front Sensor (IFS) measures brightness and grayscale tones to calibrate to DICOM Part 14. The IFS does not interfere with the viewing area while in use to cut workload and maintenance costs needed for monitor quality control.

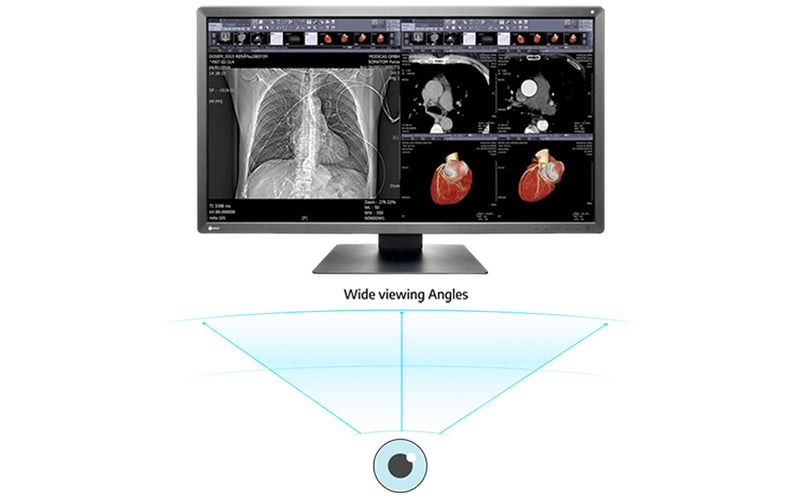

Comfortably View from Any Angle

The MX317 EIZO monitor has wide viewing angles that allow you to view the screen from the side with minimal color shift. This means that you can comfortably view the monitor from a variety of angles, without having to worry about the colors appearing washed out or distorted. This is especially useful if you need to share the monitor with others, as it allows more than one person to view the monitor comfortably at the same time.

The wide viewing angles of the MX317 EIZO monitor are made possible by its use of IPS (In-Plane Switching) panel technology. IPS panels are known for their wide viewing angles and excellent color reproduction.


Space-Saving and Lightweight

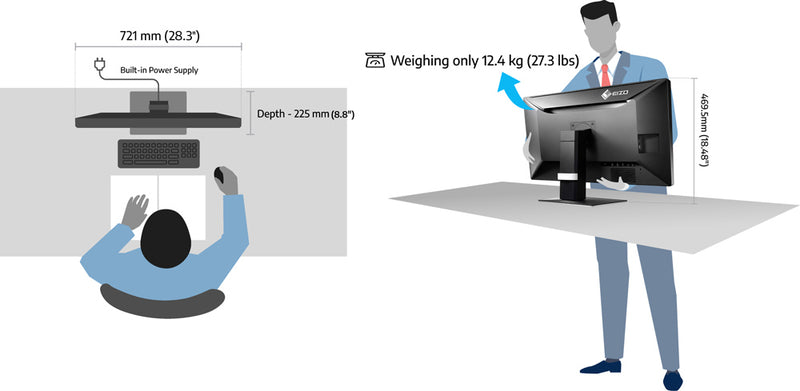

The Eizo RadiForce MX317W display, featuring dimensions of 721 mm (28.3 inches) in width, 469.5 mm (18.48 inches) in height, and 225mm (8.8 inches) in depth, is designed with stability and sturdiness in mind, ensuring a reliable and robust medical imaging solution. Weighing 12.4kg (27.3 lbs), its solid construction and well-balanced stand provide a secure and dependable workspace for radiologists. The MX315W's durable design not only adds to its longevity but also instills confidence in the accuracy and consistency of the diagnostic images displayed.

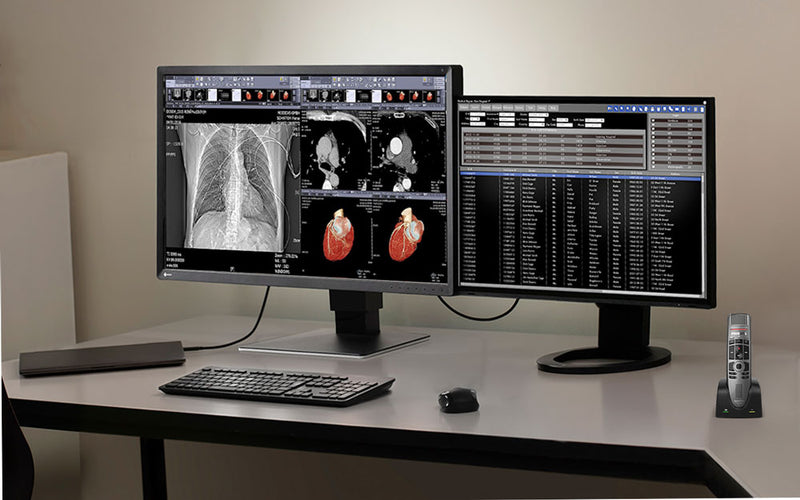

Hassle-Free Multi-Monitor Configuration

The Eizo RadiForce MX317W is equipped with DisplayPort 1.2 input and output terminals. Using a single cable connected to the input terminal, the monitor displays 8-megapixel resolution. In addition, using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.


Attain Steady Images Across the Screen

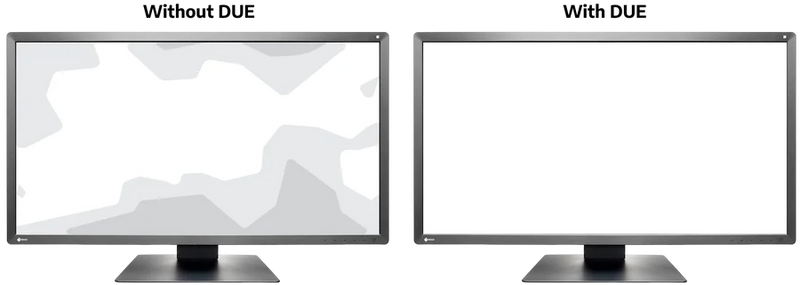

The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.


Evolve Your Image Reading

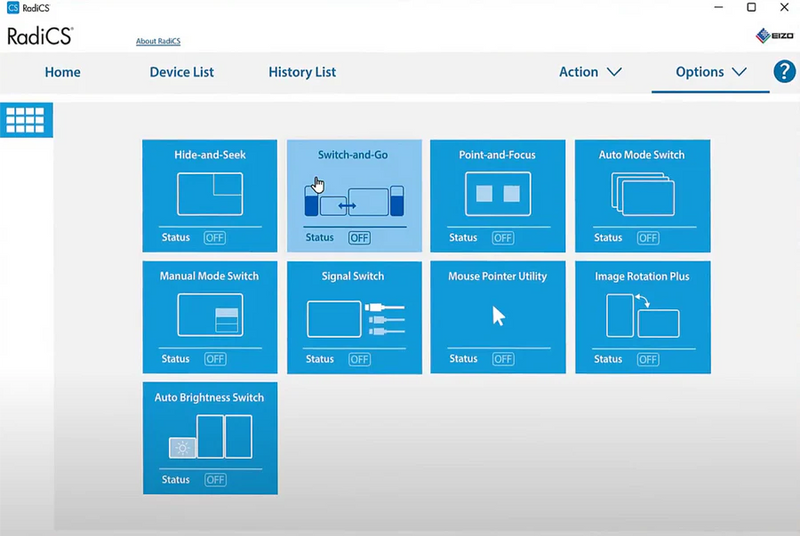

As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO's unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce MX317W and bundled RadiCS LE software.


Improve Operability

EIZO's highly versatile stand offers tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.


Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2-pixel line pair (spatial frequency of 1.467 cycles/mm), the MTF increases by approximately 51%.


Quick Information Referencing

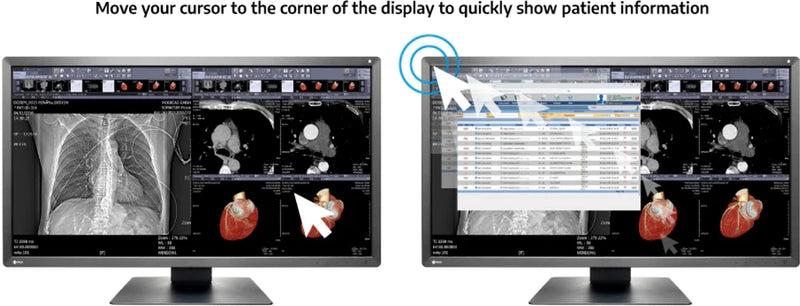

The Hide-and-Seek function enables users to easily hide the PinP (Picture in Picture) window not currently in use and reopen it as needed by moving the mouse cursor to the edge of the screen. This eliminates the need for an extra monitor while still allowing quick and efficient viewing of reports, patient charts, and other information.


Tech Specs

Manufacturer Eizo
MFG Part# MX317W-BK
Screen Type Color
Resolution 8MP (4096 x 2160)
Pixel Pitch 0.1674 x 0.1674 mm
Contrast Ratio 1800:1
Aspect Ratio Hv 17:9
Calibrated Luminance 270 cd/m2
Max Luminance 270 cd/m2
Calibration Auto (built-in front sensor)
Backlight Sensor Yes
Front Sensor Yes
Ambient Light Sensor Yes
Backlight LED
Active Screen Size (DIAGONAL) 775 mm (30.5")
Active Screen Size (H x V) 685.7 mm x 361.6 mm (26.9" x 14.2")
Video Input Signals DisplayPort
3D Tomosynthesis No
Viewing Angle (H, V) 178° / 178°
Mount Type VESA (100 mm)
Dimensions (W x H x D) 721 x 469.5 x 225 mm (28.3" x 18.48" x 8.8")
Power Consumption 260 W
Power Requirements AC 100 - 240 V: 50 / 60 Hz
Weight 27.3lbs (12.4 kg)
