Save $485

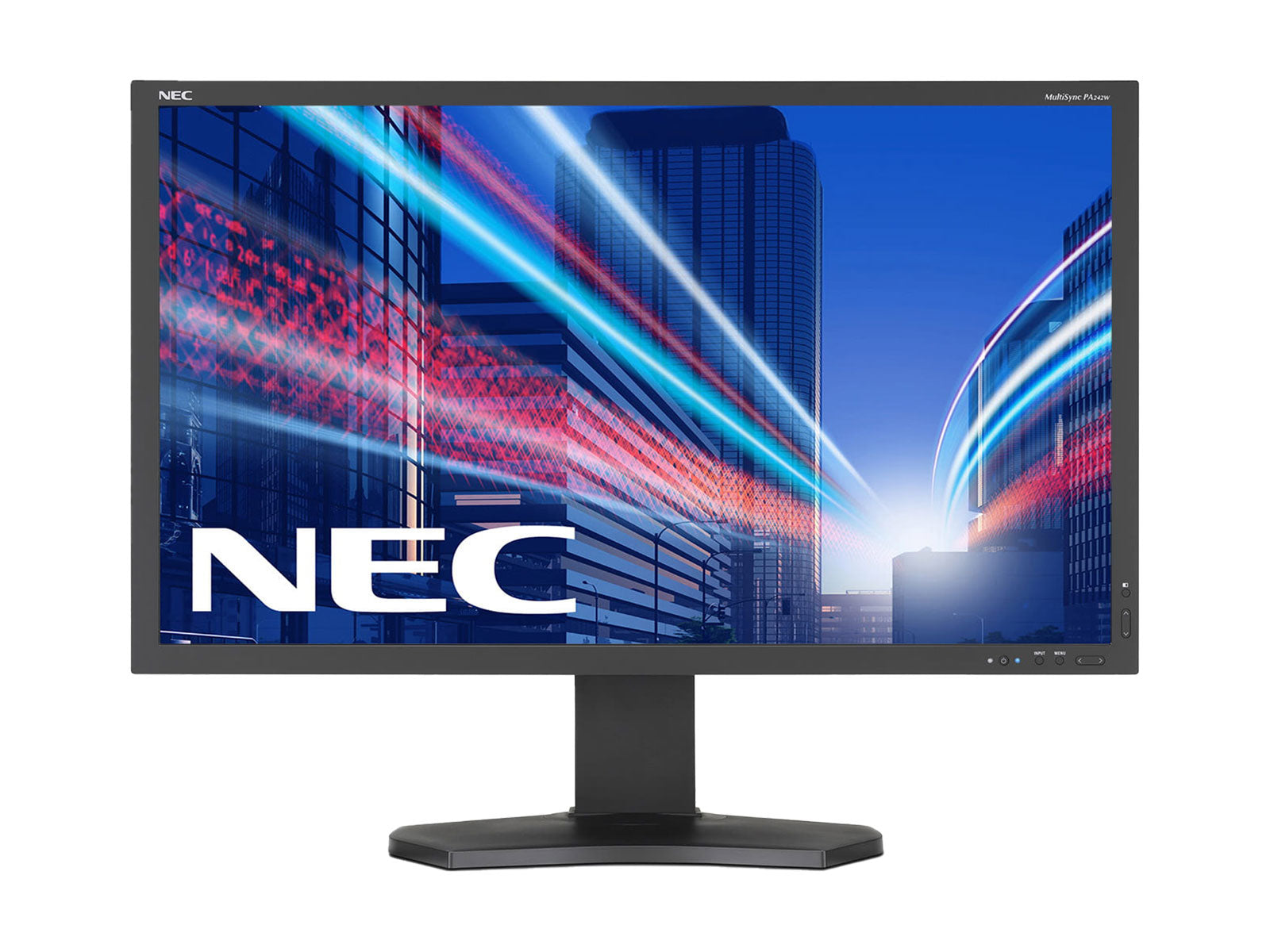

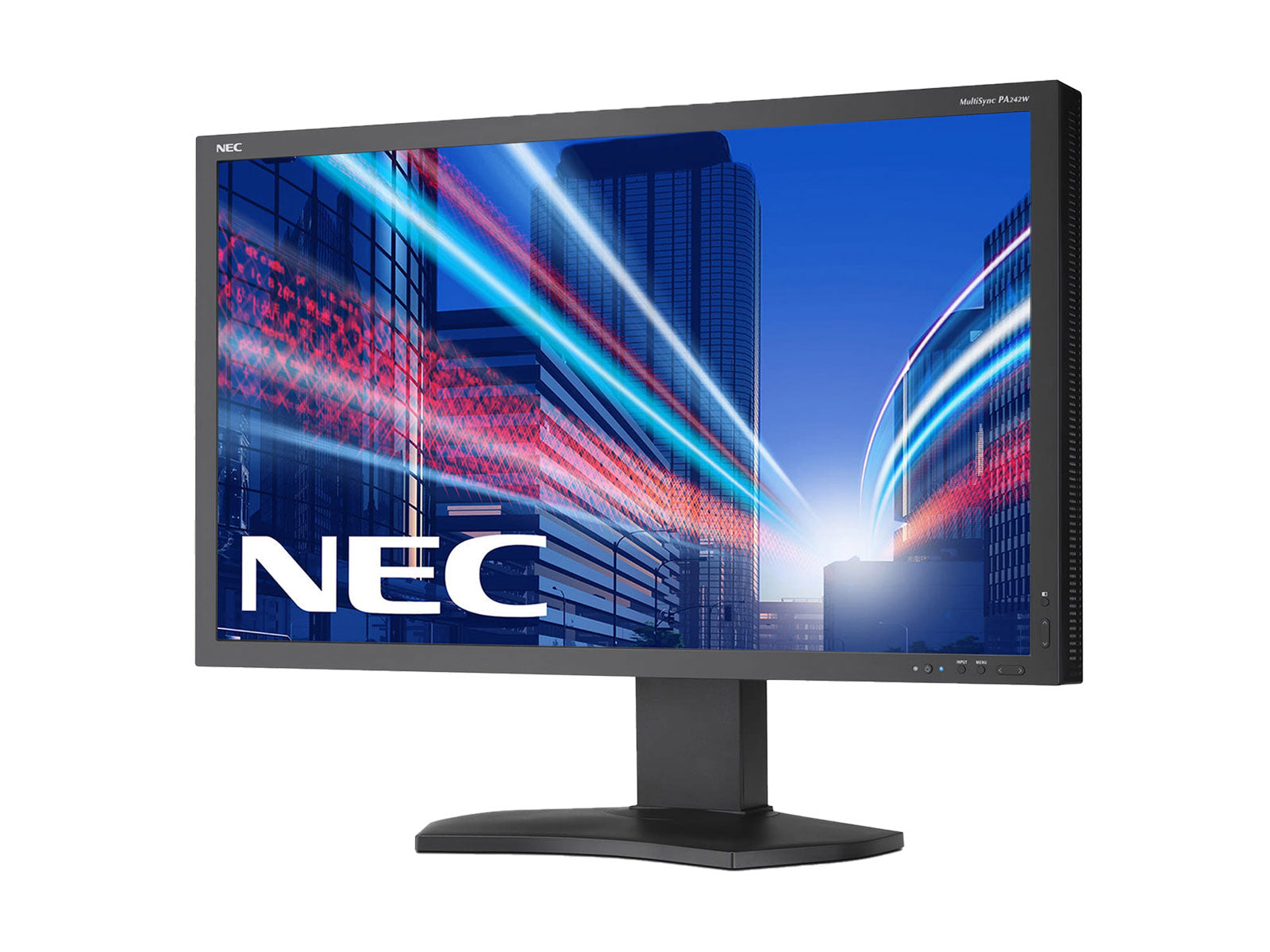

NEC MultiSync PA242W 24" WUXGA 1920 x 1200 Professional Wide Gamut Graphics Display Monitor (PA242W)

Choose Your Option: PA242W-R
$29999 $784.99
ship-truck-icon FREE SHIPPING

Finance It. /mo for 12 months. View sample plans

- +
+ -
Request A Quote
  • warranty-icon
    3-Year Premium Warranty ?
  • return-icon
    30-Day Return Guarantee
  • tech-support-icon
    Free Technical Support

NEC MultiSync PA242W 24" WUXGA 1920 x 1200 Professional Wide Gamut Graphics Display Monitor (PA242W)

Featuring a cutting-edge GB-R LED backlight, the PA242W, a 24" AH-IPS LCD monitor, is the new standard for color-accurate applications including photography and video editing. Offering an accurate 100% coverage of sRGB color gamut and 99.3% of Adobe RGB, the PA242W includes internal 14-bit 3D programmable lookup tables (LUTs) for accurate color rendition, 10-bit DisplayPort and HDMI connectivity for the highest color fidelity and built-in USB hub with DisplaySync Pro. In addition, Picture in Picture and Picture by Picture modes offer multiple ways to view information from one or two inputs.

MultiSync P/PA Series Picture in Picture

Displays a either second video source or the same video source in an adjustable sub-window over the main video source. The Picture in Picture window can display the video source in the same or an alternate color space.

Auto Image Rotation

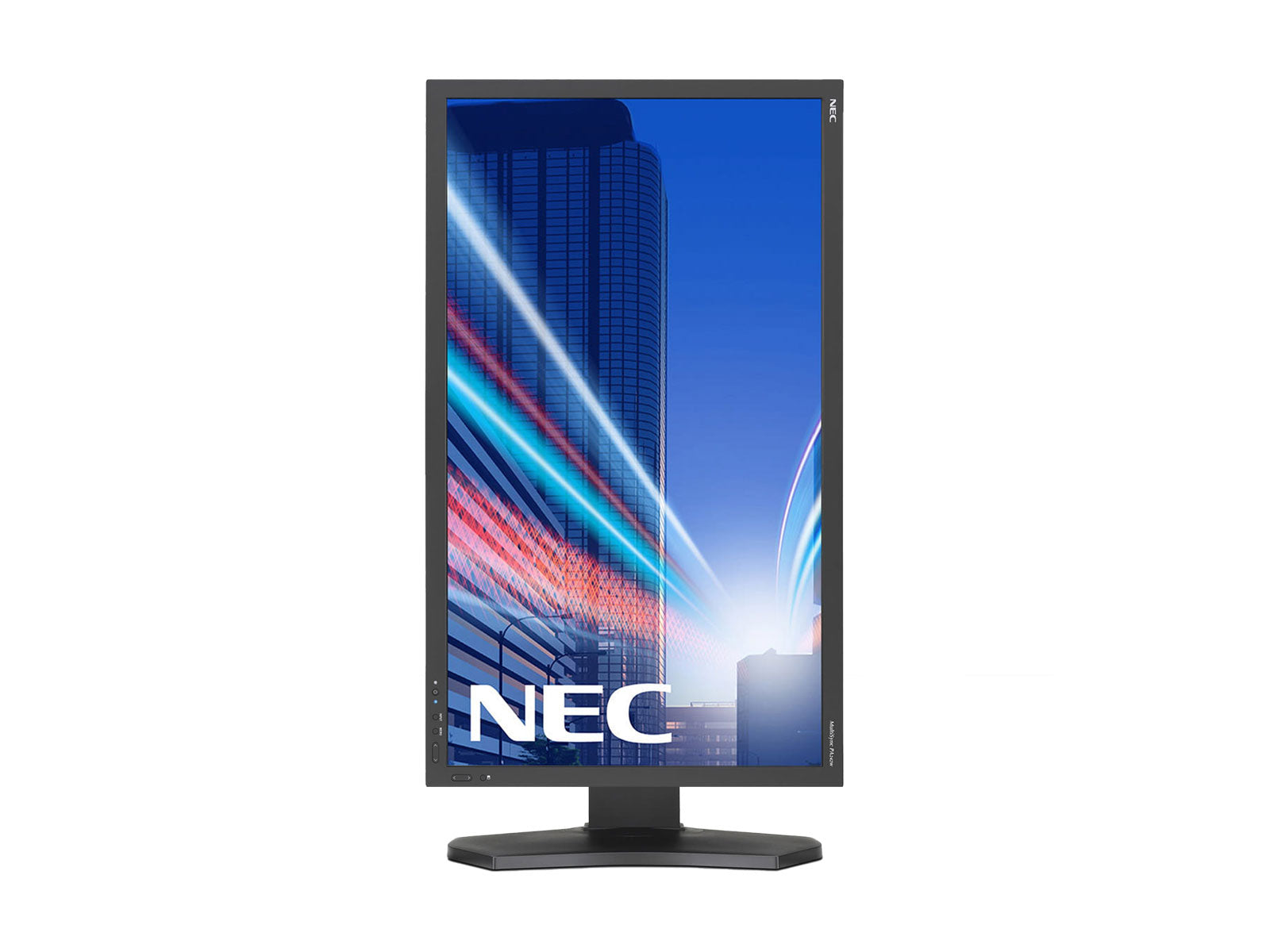

Automatic rotation of the displayed image based on the orientation of the monitor head


  • AH-IPS LCD panel with 100% coverage of sRGB and 99.3% coverage of Adobe RGB color space

  • Superior screen performance (1000:1 contrast ratio, 1920 x 1200 native resolution, 340 cd/m² brightness)

  • Supports internal programmable 14-bit 3D lookup tables (LUTs) for calibration

  • 3-port USB hub with DisplaySync ProTM controls two computers with only one keyboard and mouse

  • 5 programmable Picture Mode profiles for quick access to multiple color spaces

  • Picture in Picture and Picture by Picture modes increase productivity by displaying two sources simultaneously

  • MultiProfiler provides complete control over picture modes and enables quick print emulation

  • Wide connectivity includes 10-bit DisplayPort and HDMI as well as VGA, and DVI-D inputs

  • DisplayPort cable compatibility notice


  • Future-proof Connectivity – as well as easier support of the high resolution, 10-bit AH-IPS color signals is assured with the DisplayPort connector.

  • Improved Productivity and Reduced Desk Clutter – through easy multi-platform support and input following USB hub. Picture-by-picture allows two different platforms to be simultaneously viewed. A single mouse and keyboard can be switched to the active operating system.

  • Instant Real-time Visualisation – with the 3D LUT color emulation and the picture-in-picture function you can simulate accurately different lighting conditions with varying paper colours.

  • Responsible Approach to Environmental Impact – is maintained, without any performance compromise: Ambient Light Sensor, Carbon Footprint Meter / Carbon Savings Meter, and efficient cabinet packing design.

  • Save Time and Increase Personal Productivity – see reality on your screen and see your creative masterpieces precisely as you envisioned them.


Docs & Drivers

    Tech Specs

    Manufacturer NEC
    MFG Part# PA242W
    Screen Type Color
    Resolution 1920 x 1200
    Pixel Pitch 0.27 x 0.27 mm
    Contrast Ratio 1000:1
    Aspect Ratio Hv 16:10
    Calibrated Luminance 340 cd/m2
    Max Luminance 340 cd/m2
    Active Screen Size (DIAGONAL) 611 mm (24.1")
    Active Screen Size (H x V) 408 x 306 mm (16 x 12")
    Video Input Signals DisplayPort
    Viewing Angle (H, V) 178°, 178°
    Mount Type VESA (100 mm)
    Dimensions (W x H x D) 556.8 x 378-528 x 227.6 mm (21.9" x 20.7" x 8.9")
    Power Consumption 56 W
    Power Requirements 0.84 A/0.38 A; 100-240 V
    Weight 23.4 lbs. (10.6 kg)
    Backlight LCD
