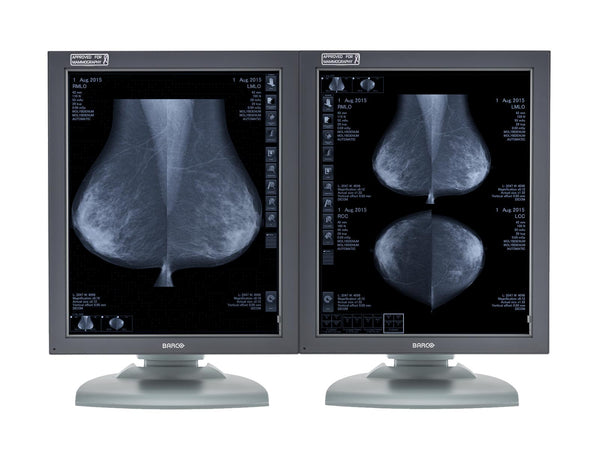

Barco® Coronis MDMG-5121 5MP 21" Grayscale Breast Imaging PACS Mammography Display

Choose Your Option: K9601259-P-R
Request a Quote

Barco® Coronis MDMG-5121 5MP 21" Grayscale Breast Imaging PACS Mammography Display

Highly Accurate Grayscale Images
Seeing is believing. The Barco® Coronis 5MP Mammo system uses advanced LCD technology to offer radiologists highly accurate grayscale images with high resolution, high contrast, and perfect geometry. Innovative technology, such as per-pixel Uniformity, ensures pixel-perfect images without the interference of screen noise, which might hide subtle details.

Advanced Precision
Accuracy is key in your line of work. The 12-bit DICOM look-up table produces 1024 simultaneous shades of gray for a higher diagnostic precision, making detecting the most subtle details in digital mammography images possible.

An Investment That Lasts
Spend your equipment budget wisely. Thanks to the DuraLight backlight technology, Coronis 5MP Mammo has a 3 to 5 times longer lifetime than conventional displays for enduring value.

The Preferred Digital Mammography Solution
Coronis 5MP Mammo is the preferred choice for training and screening centers worldwide. Put its advanced technologies to work for your radiology practice.

Our Coronis 5MP Mammo Display Solution Includes:

  • Two 5MP flat panel displays
  • Medical QAWeb software for automated calibration and quality assurance
  • A high-speed, high-performance display controller

    Tech Specs

    Manufacturer Barco®
    MFG Part# K9601259
    Screen Type Grayscale
    Resolution 5MP (2560 x 2048)
    Pixel Pitch 0.1650 x 0.1650 mm
    Contrast Ratio 900:1
    Aspect Ratio Hv 4:5
    Calibrated Luminance 600 cd/m2
    Max Luminance 1600 cd/m2
    Calibration Auto (built-in front sensor)
    Backlight Sensor Yes
    Front Sensor Yes
    Ambient Light Sensor No
    Backlight CCFL
    Screen Technology TFT AM LCD Dual Domain IPS
    Active Screen Size (DIAGONAL) 21.3" (541 mm)
    Active Screen Size (H x V) 422 x 338 mm (16.6 x 13.3")
    Video Input Signals DVI
    3D Tomosynthesis Yes
    Viewing Angle (H, V) 176°, 176°
    Mount Type VESA (100 mm)
    Dimensions (W x H x D) 408 x 582~642 x 250 mm (16" x 22.9" x 9.8")
    Power Consumption 65 W
    Power Requirements 100-240 V
    Weight 29.3 lbs (13.3 kg)
