Executive Summary

Why Display Quality Matters in Industrial Radiography

In industrial radiography, inspectors often rely on subtle grayscale differences to identify cracks, porosity, inclusions, corrosion, wall loss, lack of fusion, density variation, and other discontinuities. If grayscale presentation changes between workstations, image interpretation may become inconsistent between inspectors, facilities, or shifts.

Standard office monitors are generally designed for productivity applications, not grayscale-critical image interpretation. While they may appear visually sharp, they often lack luminance stability, grayscale consistency, DICOM calibration support, quality assurance reporting, and long-term calibration management.

Medical-grade diagnostic displays were developed specifically for radiology and grayscale image review. The same visual principles that matter in radiology also apply in NDT. Both environments depend heavily on consistent grayscale rendering and controlled luminance behavior.

For this reason, DICOM-calibrated medical displays are increasingly being considered for industrial DR and CR review stations, especially in aerospace, defense, energy, additive manufacturing, oil and gas, and high-liability inspection environments.

What Is DICOM Part 14 GSDF?

DICOM Part 14 defines the Grayscale Standard Display Function (GSDF), a luminance response curve designed to make grayscale changes visually consistent to the human eye.

Instead of using consumer gamma behavior, DICOM GSDF calibration aligns the monitor’s luminance response with a perceptually linear grayscale model. This allows subtle grayscale differences to remain more visible and more repeatable across the display.

In practical NDT terms, DICOM GSDF calibration can help improve:

• Low-contrast visibility
• Consistency between workstations
• Cross-shift review consistency
• Observer repeatability
• Grayscale stability over time
• Calibration documentation
• Long-term QA tracking

DICOM Calibration vs. DICONDE Compliance

DICOM calibration and DICONDE compliance are related, but they are not the same thing.

A display may be perfectly calibrated to DICOM GSDF and still not prove that the entire industrial imaging workflow is compliant. Full workflow validation still requires evaluation of acquisition systems, DICONDE viewers, metadata handling, archive behavior, workstation configuration, and written procedures.

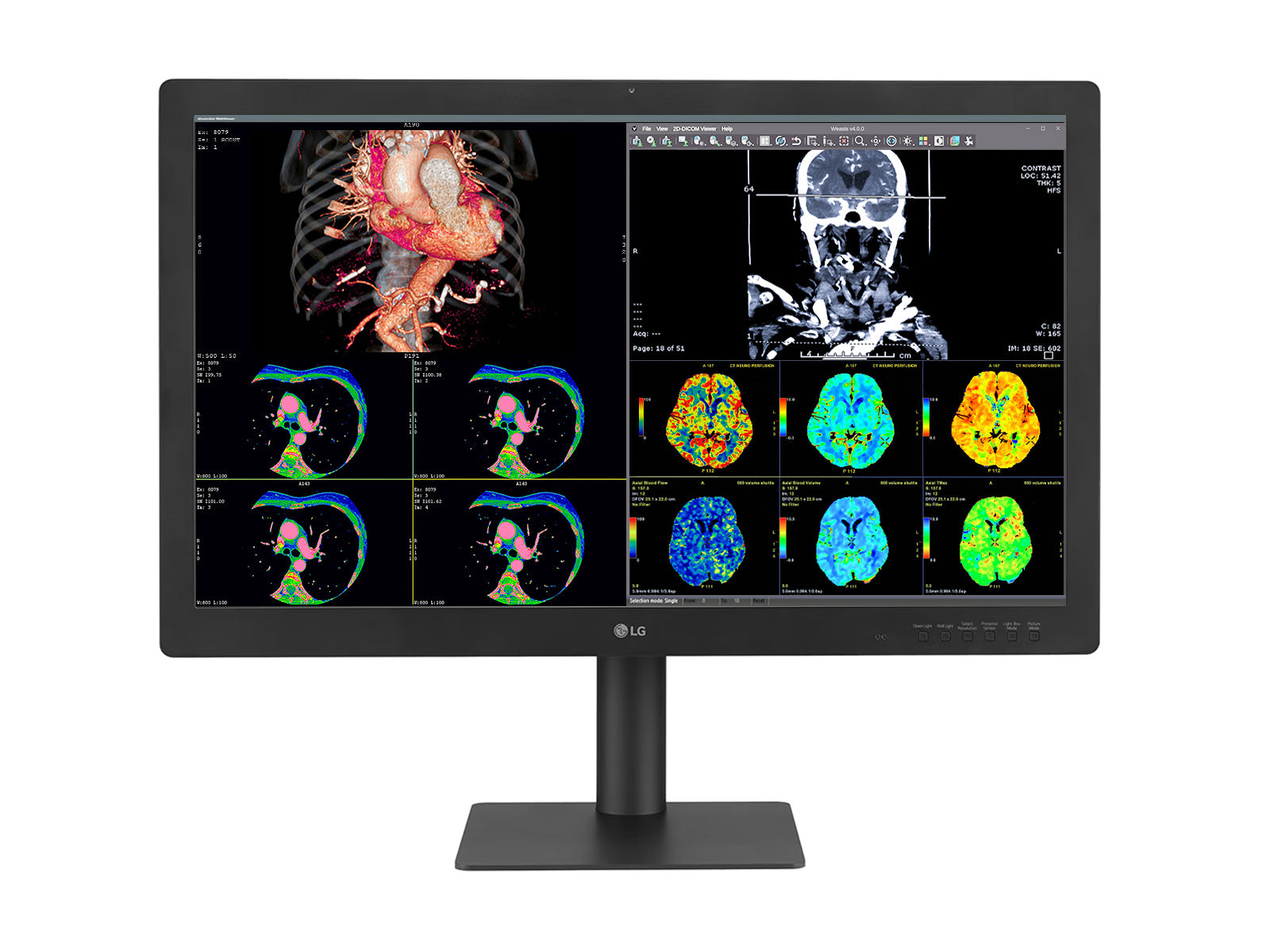

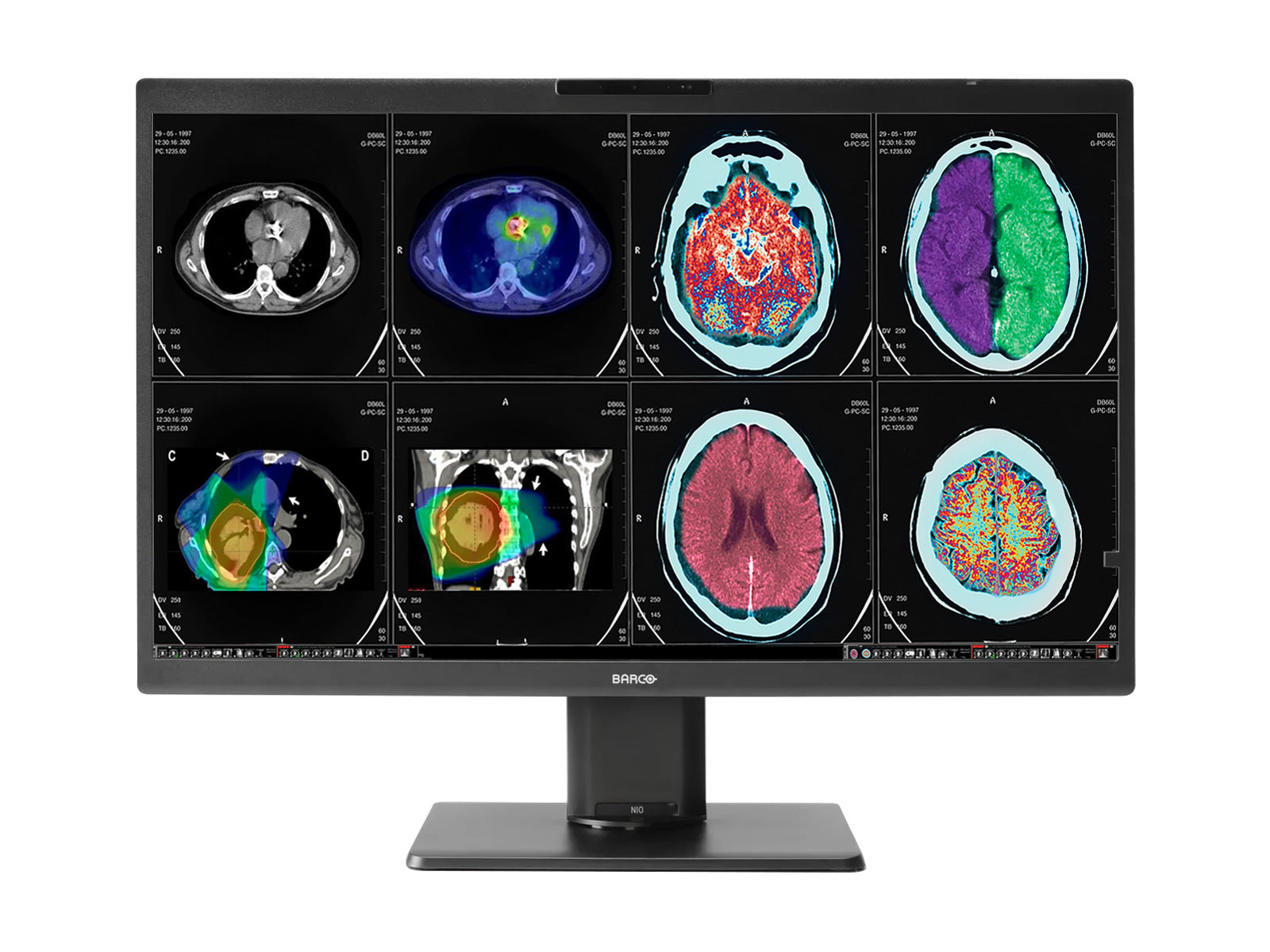

Recommended Medical Displays for NDT X-Ray Image Review

Depending on the inspection workflow, image resolution requirements, and quality expectations, several medical-grade displays are particularly well suited for industrial radiography and DICONDE review environments.

PerfectLUM as a Universal DICOM Calibration Solution

While medical-grade diagnostic displays provide the most controlled grayscale imaging environments, many NDT organizations also use professional commercial displays for industrial image review.

PerfectLUM can serve as an alternative DICOM calibration solution for compatible displays that support 10-bit grayscale workflows. This allows organizations to calibrate a wider range of displays to the DICOM Part 14 GSDF standard for grayscale-critical review applications.

For facilities reviewing DICONDE-compliant images, PerfectLUM can help improve grayscale consistency, luminance behavior, and display QA documentation even when the display itself is not originally manufactured as a medical diagnostic monitor.

PerfectLUM supports:

• DICOM Part 14 GSDF calibration
• Pre-calibration measurement
• Post-calibration validation
• Luminance measurement and tracking
• Quality assurance reporting
• Periodic recalibration workflows
• Display conformance checks
• Long-term calibration history

This can be especially valuable for organizations that want to standardize grayscale presentation across multiple workstations or extend DICOM calibration capabilities to compatible professional displays already deployed within the organization.

Why QA Documentation Matters

In regulated industrial imaging environments, display calibration should not be treated as a one-time setup task. It should be managed as part of a controlled quality assurance program.

Calibration reports, luminance measurements, workstation configuration records, software versions, ambient lighting documentation, and display validation results may become important quality records during audits, Nadcap reviews, or customer compliance evaluations.

A strong NDT display QA process often includes:

• Periodic DICOM GSDF validation
• Luminance stability checks
• Ambient light monitoring
• Controlled workstation configuration
• Documented recalibration intervals
• Change management procedures
• Calibration report retention
• Corrective action documentation

Recommended NDT Display Implementation Workflow

1. Define the intended use of the workstation.
2. Identify applicable NDT standards and customer requirements.
3. Select a suitable medical or compatible professional display.
4. Install the display at native resolution.
5. Confirm graphics card, driver, and cable configuration.
6. Install the approved DICONDE viewer.
7. Install PerfectLUM or equivalent calibration software.
8. Measure display performance under normal lighting conditions.
9. Calibrate to DICOM Part 14 GSDF.
10. Validate calibration performance.
11. Archive QA and calibration reports.
12. Define periodic QA and recalibration schedules.

Conclusion

DICOM-calibrated medical displays can provide significant advantages for NDT X-ray image review by improving grayscale consistency, luminance stability, and long-term display QA management.

For industrial radiography, DR, CR, aerospace inspection, weld analysis, and DICONDE workflows, display calibration should be treated as a controlled component of the overall digital imaging chain.

Medical-grade displays from LG, EIZO, and Barco® can provide highly controlled grayscale environments for professional image interpretation. In addition, PerfectLUM can extend DICOM GSDF calibration capabilities to compatible 10-bit displays, helping organizations standardize grayscale presentation and maintain repeatable image review conditions across multiple workstations.

The display should still be considered one component within the larger workflow. Full compliance and operational acceptance should always be validated according to applicable ASTM, ASME, ISO, Nadcap, customer, and Level III-approved requirements.
