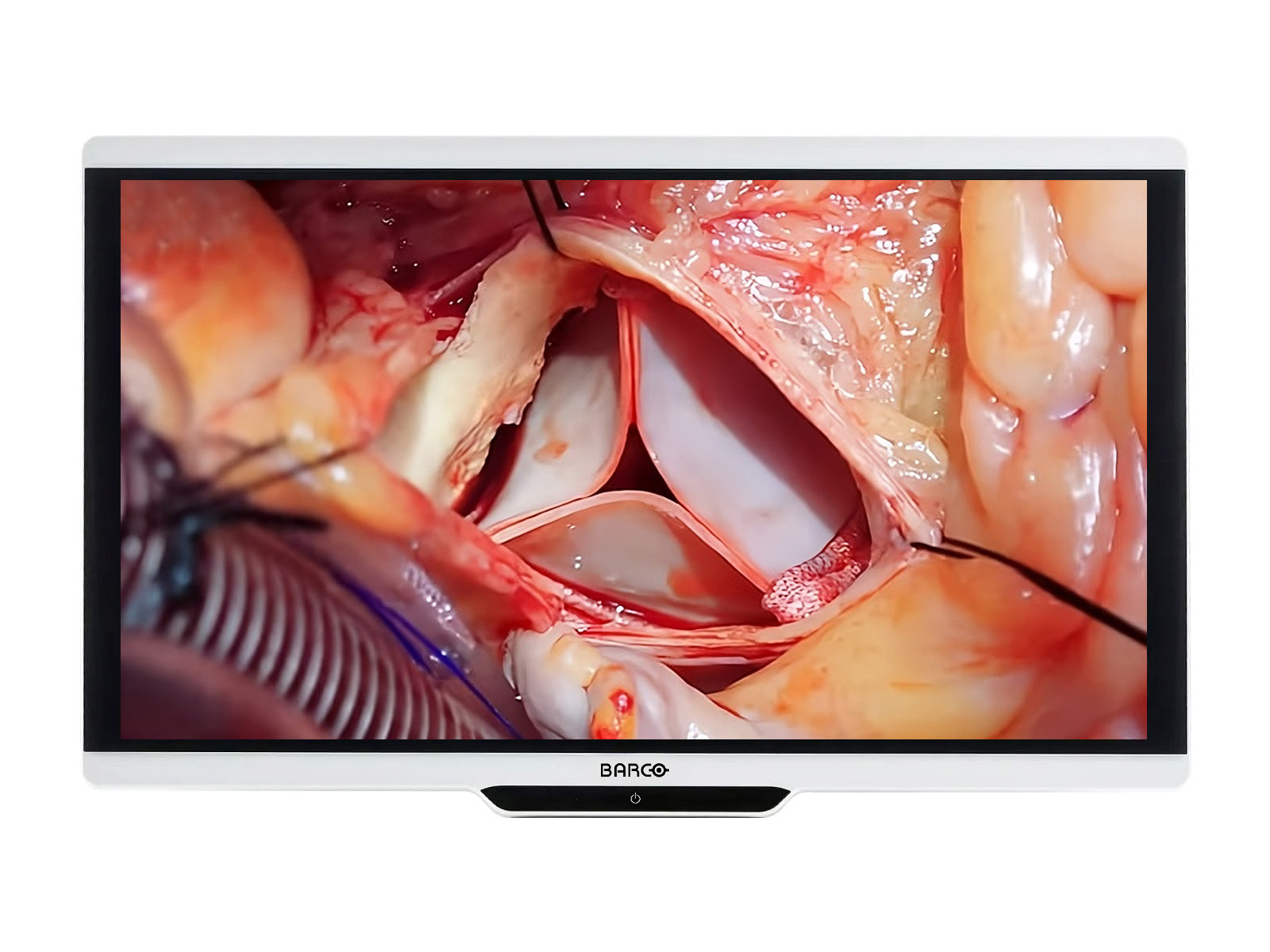

Name: Barco MDSC-8427 12G 27 " 8MP 4K Monitor per il display medico chirurgico UHD (K9352053)
Brand: Barco
SKU: 685310419034
Availability: InStock

Tech Specs

Manufacturer	Barco®
Tipo di schermo	Color
Risoluzione	3840 x 2160
Passo pixel	0.155 mm
Rapporto di contrasto	1400:1
Rapporto d'aspetto Hv	16:9
Luminanza calibrata	550 cd/m2
Luminanza massima	750 cd/m2
Controluce	LED
Tecnologia dello schermo	TFT AM LCD, IPS-PRO technology with LED backlight
Dimensione dello schermo attivo (DIAGONALE)	27" (685 mm)
Dimensioni schermo attivo (A x V)	597 x 336 mm (23.50" x 13.23")
Segnali di ingresso video	4K-UHD input selectable among: d Quad-link 3G-SDI up to 4096 x 2160 @50Hz/60Hz d 12G-SDI up to 4096 x 2160 @50Hz/60Hz d 1x DP 1.1 up to 4096 x 2160 @25Hz/30Hz d 2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz d 1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz d 2x HDMITM 2.0 up to 4096 x 2160 @50Hz/60Hz FHD input (upscaled to 4K) d 1x DVI-SL
Consigliato per	All digital images, except digital mammography
Angolo di visualizzazione (H, V)	178°, 178°
Tipo di montaggio	VESA 100x100 mm
Consumo energetico	100 W
Requisiti di alimentazione	100 – 240 VAC / 50-60 Hz

Barco^® MDSC-8427 12G — 27-inch 4K UHD Surgical Display

The Barco^® MDSC-8427 12G is a next-generation 27-inch 4K UHD surgical display engineered for precision and reliability in modern operating rooms. With exceptional brightness, crisp contrast, and advanced image processing optimized for medical video, it delivers razor-sharp visualization essential for real-time surgical decision-making.

True-to-Life Color Reproduction

Optimized for endoscopy and integrated OR environments, the MDSC-8427 12G supports a wide color gamut (Adobe 92%) with advanced color calibration algorithms, ensuring highly accurate and consistent representation of delicate tissue structures. Compatibility with ITU-709, DCI-P3, and BT.2020 color spaces makes it ideal for multi-modality imaging where precision is critical

Seamless Workflow & User-Friendly Interfaces

Designed with flexibility in mind, the display features dual user interfaces—one on the front and one on the back.

The front capacitive touchscreen can be programmed for personalized workflows, allowing surgeons to quickly adjust settings or layouts.

Four dedicated shortcut buttons enable instant configuration changes, ensuring smooth transitions during procedures

Distinctive OR-Ready Design

The slim and lightweight 27-inch form factor offers a sleek, professional alternative to older 24" or 26" HD models, while maintaining a robust build optimized for OR use. A smooth, splash-proof surface, integrated cable cover, and rubber joystick enhance cleanability and support infection control protocols.

Built-In Safety with Automated Failover

The automated failover mechanism ensures uninterrupted imaging: if the primary signal is lost, the display automatically switches to a backup feed—no manual intervention required. This safeguard helps maintain a secure and reliable surgical environment

Advanced Connectivity

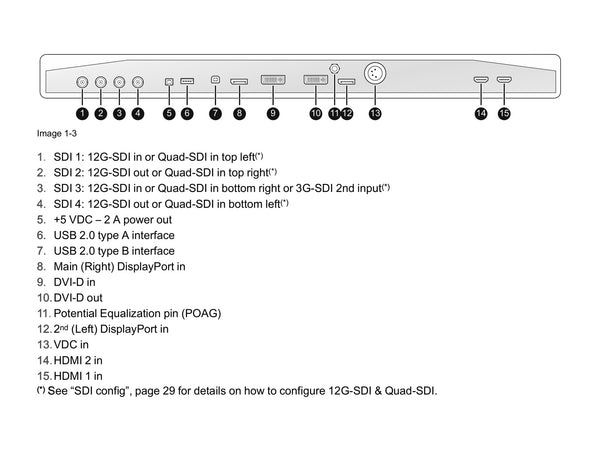

Supporting both 12G-SDI and Quad-link 3G-SDI, along with DisplayPort and HDMI 2.0 inputs, the MDSC-8427 12G integrates easily into diverse OR setups. Dual 12G-SDI loop-through outputs and DVI cloning provide flexibility for secondary displays or recording devices.

Barco^® MDSC-8427 12G 27 " 8MP 4K Monitor per il display medico chirurgico UHD (K9352053)
