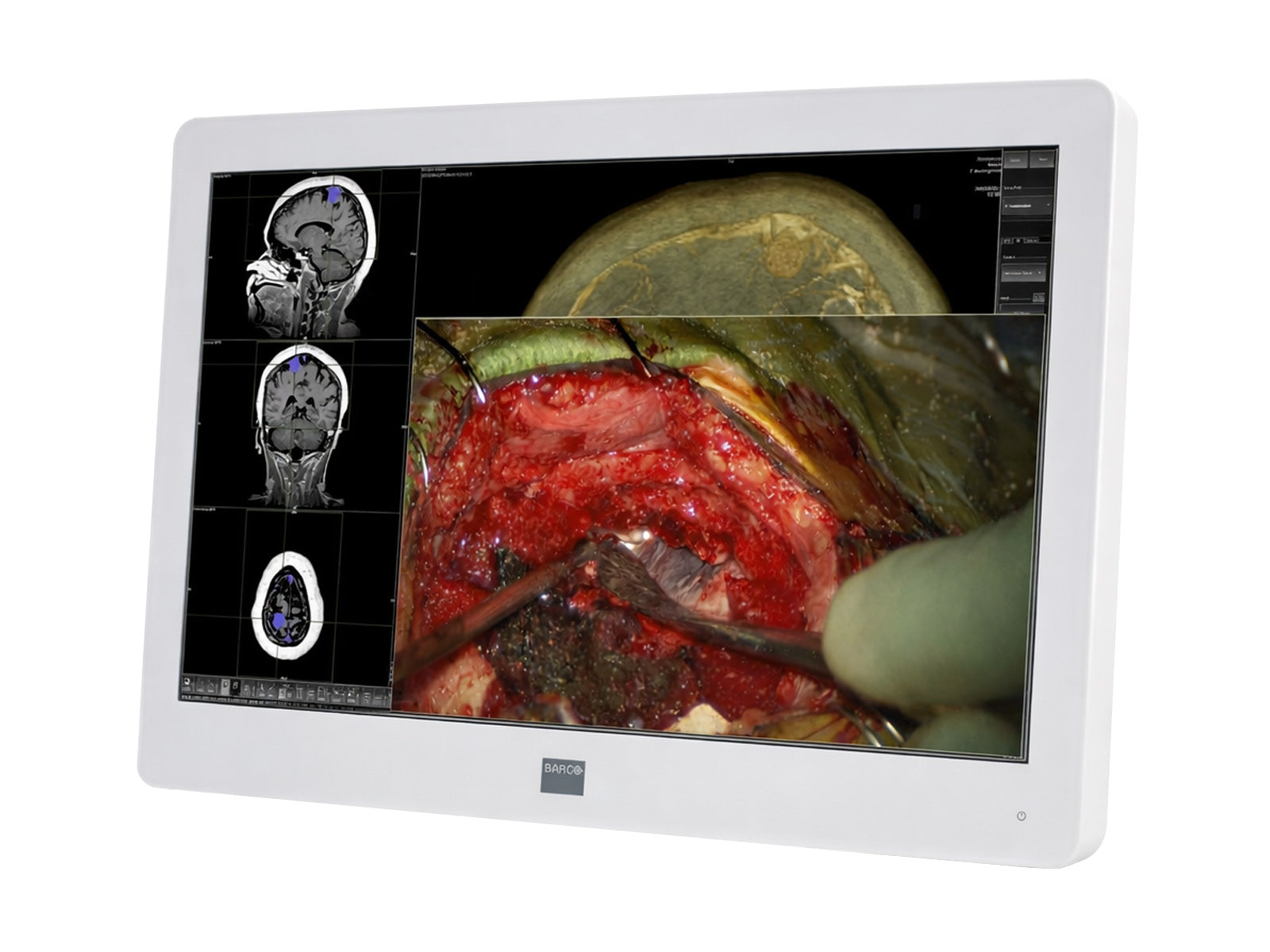

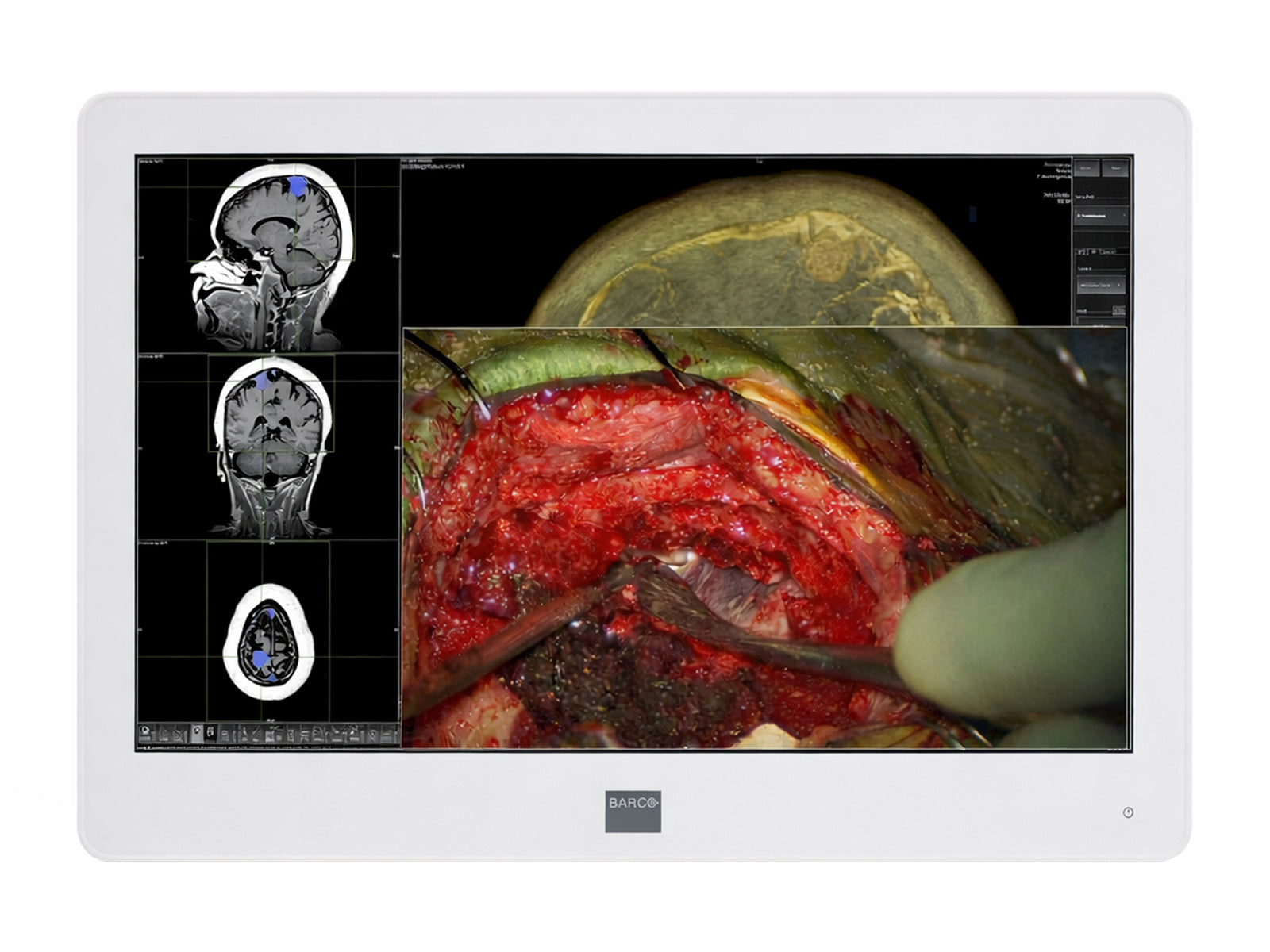

Name: Barco MDSC-2224 MNA 24" 2MP FHD 1920 x 1200 Surgical Endoscopy Medical Display Monitor (K9307913)
Brand: Barco
SKU: K9307913
Availability: InStock

Tech Specs

Manufacturer

Barco

MFG Part#

K9307913

Screen Type

Color

Resolution

1920 x 1200

Pixel Pitch

0.270 x 0.270 mm

Contrast Ratio

1000:1

Aspect Ratio Hv

16:9

Warranty & Support

5-Year Premium Warranty

5-year premium Monitors.com warranty on parts & labor

5-year premium Monitors.com loaner coverage

5-year premium Monitors.com technical support

5-Year Hot-Swap Coverage

If your equipment fails, we will send you a replacement product so you do not have to wait for a repair

30-Day Return Guarantee

Enjoy peace of mind with our 30-day return guarantee

Free Technical Support

1 (800) 801-8432

Barco’s MDSC-2224 MNA is a 24-inch near-patient surgical display with LED backlight, featuring full HD resolution and a wide color gamut. Purpose-built for the operating room, the MDSC-2224 offers an easy-clean design, smart mechanics, and the most detailed images in the procedure room today.

Color-calibrated, artifact-free images

Thanks to its high brightness, high contrast, and high resolution, the MDSC-2224 MNA presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.

Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing, are your guarantee for detailed, sharp, and noise-free pictures, so you can detect the most subtle changes in tissue color.

Multi-source, multi-display imaging over IP

With its broad input connectivity, the MDSC-2224 MNA offers the highest flexibility for multimodal imaging (PiP & PaP), enabling the reproduction of images from multiple sources and on multiple displays in the integrated operating room.

The 24-inch display is one of Barco’s network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.

Designed for use in the operating room

Barco’s MDSC-2224 MNA allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing, and full screen protection. The fanless design avoids the spread of contaminants.

The display comes with a smart cable management system that hides the cables for a clutter-free set-up. It is light and compact, allowing easy (dual-monitor) mounting on surgical booms and spring arms.

Key Feature

24” wide-screen LCD
Full HD resolution
Wide viewing angle
High-brightness LED backlight
Advanced, full 10-bit, image processing algorithms for artifact-free video reproduction
Calibrated for perfect color and grayscale reproduction (ITU 709 and DICOM standards)
Easy cleaning thanks to full size protection screen and smooth design without gaps
Easy cable management allows hiding of cables in a flexible back cover
Lightweight for easy mounting on spring arms
Widest range of SD and HD input signals, including 3G-SDI and DisplayPort

Reviews

Add Your Review

Name

Hide my name

Rating

Please let us know what you liked or disliked about this product so other shoppers can make a more informed decision.

Manufacturer	Barco
MFG Part#	K9307913
Screen Type	Color
Resolution	1920 x 1200
Pixel Pitch	0.270 x 0.270 mm
Contrast Ratio	1000:1
Aspect Ratio Hv	16:9
Calibrated Luminance	350 cd/m²
Max Luminance	350 cd/m²
Backlight	LED
Screen Technology	TFT AM LCD / S-IPS technology / LED backlight
Active Screen Size (DIAGONAL)	24" (611.3 mm)
Active Screen Size (H x V)	518.4 x 324 mm (20.4" x 12.7")
Video Input Signals	DVI-I Single-Link (Digital & Analog – HDMI video support with HDCP), Component Video RGBS / YPbPr (4xBNC), S-video (4-pin Mini DIN), Composite video (1xBNC), 3G-SDI (1xBNC), DisplayPort (VESA std 1.1a), Optional: integrated BARCO Nexxis network adapter
Recommended For	All digital images, except digital mammography
Viewing Angle (H, V)	178°, 178°
Mount Type	VESA 100x100 mm
Dimensions (W x H x D)	595 × 414 × 84 mm (23.4" × 16.3" × 3.3")
Power Consumption	Less than 60 W
Power Requirements	100 – 250 VAC / 47-63 Hz auto-switch
Weight	17.4 lbs (7.9 kg)

Barco MDSC-2224 MNA 24" 2MP FHD 1920 x 1200 Surgical Endoscopy Medical Display Monitor (K9307913)
